Winters Instruments

Winters Instruments LM1050 Lm1 Anti-Clogging Submersible Pressure Transmitter

Dropship

Get it by Wed, Jun 25 - Mon, Jun 30

SKU SKU:kpi073-LM1050

$1,636.51 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

category: Pressure Transmitters

manufacture: Winters Instruments

mpn: LM1050

subcategory: Lm1 Anti Clogging Submersible Pressure Transmitter

Product Description

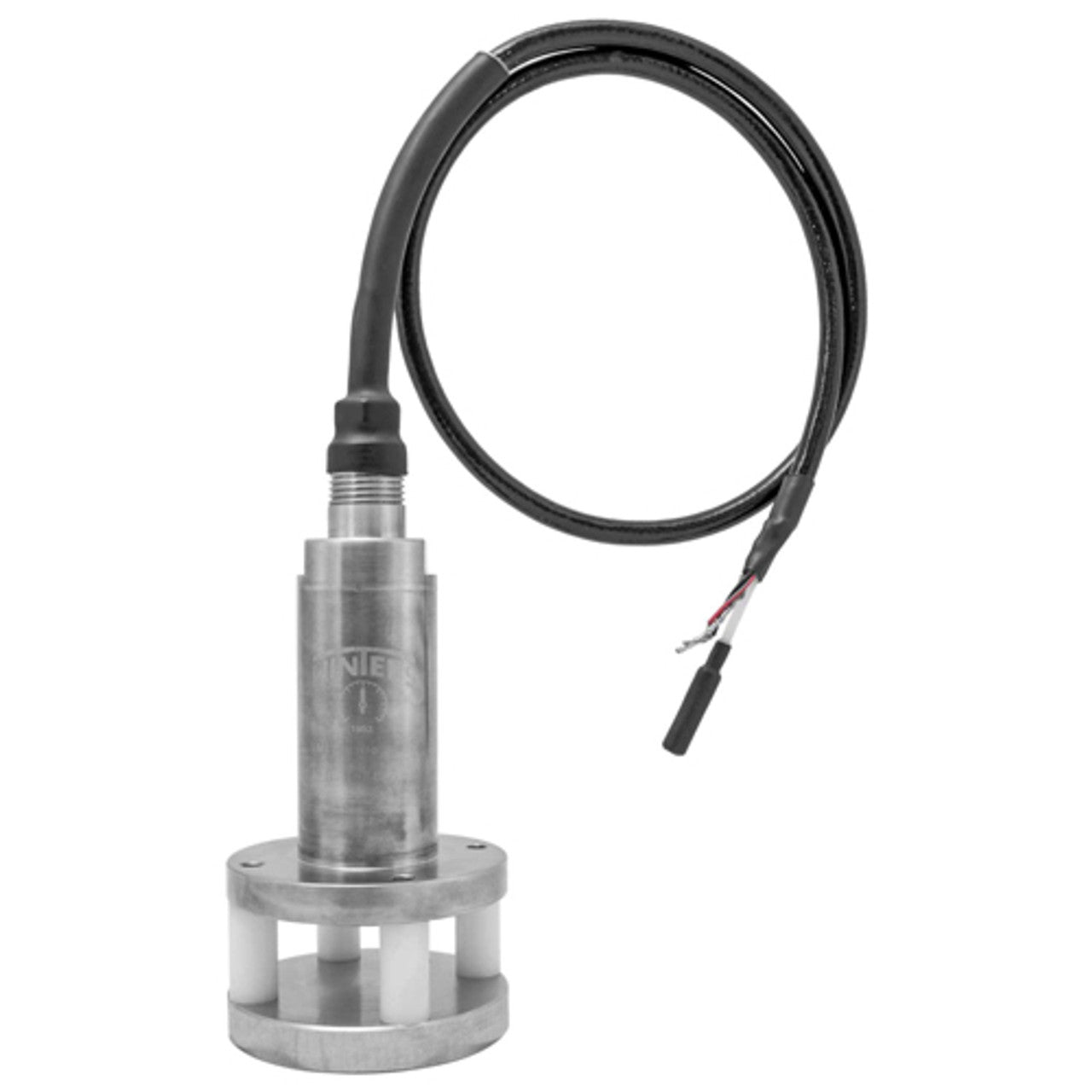

Winters Instruments - LM1050

Heavy-duty submersible transmitter for level measurement in sludge and slurry installations
316L SS housing with anti-clogging sensor and reinforced diaphragm seal
Standard ranges from 2 thru 50 psi, optional ranges up to 140 psi
±0.25% accuracy
33’ (10m) of vented cable standard, other lengths also available
NEMA 6P / IP68 for full immersion
RoHS compliant
5 year warranty

Manufactured for level measurement in sludge and slurry installations including lifting stations

Output SignalStandard 2-wire: 4-20 mA / Vs

AccuracyStandard: ±0.5% FSO, Optional: ±0.25% FSO

Response Time 5 ms

Permissible TemperatureOperating: 0°F to 200°F (-18°C to 93°C), Storage: -20°F to 250°F (-29°C to 121°C)

Reverse Polarity ProtectionNo damage. No function.

Short Circuit ProtectionUp to 40 Vdc

Electromagnetic CompatibilityInternal filtering

Housing316L SS

Pressure PortFlush mount

Diaphragm316L SS, triple seated

Weight570 g (without cable)

Electrical Connector1/2" NPTM submersible conduit

Lightning ProtectionMOV and dual gas discharge tube

Enclosure RatingNEMA 6P/IP68
