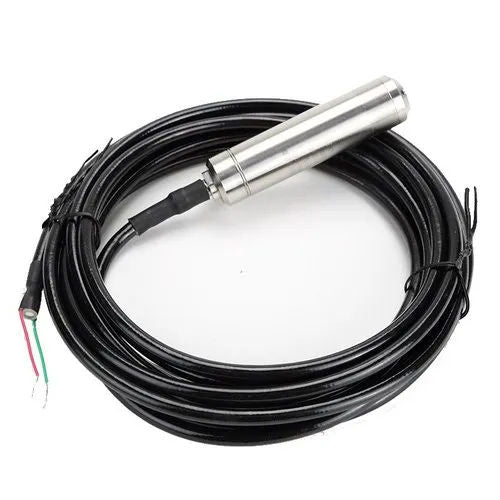

Winters Instruments LM61PR1W3GS16SCL6 Lm6 All Stainless Steel Submersible Pressure Transmitter

Dropship

Get it by Mon, Jul 14 - Sat, Jul 19

SKU SKU:kpi073-LM61PR1W3GS16SCL6

$1,050.52 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

category: Pressure Transmitters

manufacture: Winters Instruments

mpn: LM61PR1W3GS16SCL6

subcategory: Lm6 All Stainless Steel Submersible Pressure Transmitter

Product Description

Winters Instruments - LM61PR1W3GS16SCL6

Designed for continuous level measurement in clean water, reservoirs and treatment plants
Rugged stainless steel housing and highly accurate stainless steel sensor
PUR vented cable in various lengths
Available ranges from Inches of Water up to 300 psi
±0.35% accuracy standard, ±0.25% optional
IP68 rated for full submersion and continous measurement
CE mark and RoHS compliant
5 year warranty

Appropriate for all level and depth measurement applications including open tanks, ground water, reservoirs and water treatment facilities

Output Signal4…20 mA, 2-wire / Vs

Accuracy±0.35% Full Scale Output, ±0.25% FSO optional

Load ResistanceRL

Long Term Stability0.1% Full Scale per year

Response Time1 ms

Storage Temperature-40 to 85 deg C (-40 to 185 deg F)

Media Temperature0 to 85 deg C (32 to 185 deg F)

Insulation Resistance100 MΩ @ 250 VDC

Reverse Polarity ProtectionYes

Lightning ProtectionYes

Electromagnetic ProtectionIEC 61000

Enclosure RatingIP68 for full submersion and continuous measurement

Housing1Cr18Ni9Ti

Wetted Parts316L welded sensor

Long Term Stability±0.1% FSO (typically per year)

Operation Life1 million cycles, minimum
