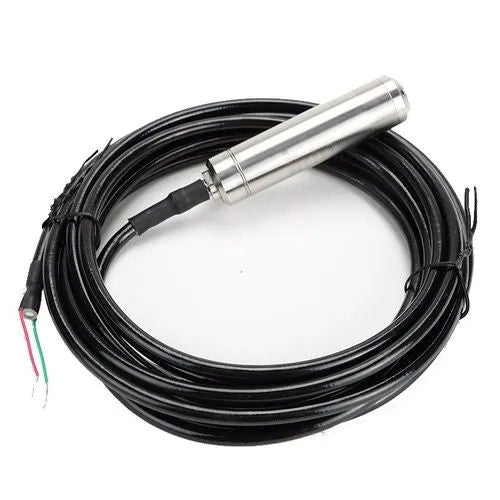

Winters Instruments - LM61PR5W3GS16SCL6
Features
- Designed for continuous level measurement in clean water, reservoirs and treatment plants
- Rugged stainless steel housing and highly accurate stainless steel sensor
- PUR vented cable in various lengths
- Available ranges from Inches of Water up to 300 psi
- ±0.35% accuracy standard, ±0.25% optional
- IP68 rated for full submersion and continous measurement
- CE mark and RoHS compliant
- 5 year warranty
Applications
Appropriate for all level and depth measurement applications including open tanks, ground water, reservoirs and water treatment facilities
Additional Information
Output Signal4…20 mA, 2-wire / Vs
Accuracy±0.35% Full Scale Output, ±0.25% FSO optional
Load ResistanceRL
Long Term Stability0.1% Full Scale per year
Response Time1 ms
Storage Temperature-40 to 85 deg C (-40 to 185 deg F)
Media Temperature0 to 85 deg C (32 to 185 deg F)
Insulation Resistance100 MΩ @ 250 VDC
Reverse Polarity ProtectionYes
Lightning ProtectionYes
Electromagnetic ProtectionIEC 61000
Enclosure RatingIP68 for full submersion and continuous measurement
Housing1Cr18Ni9Ti
Wetted Parts316L welded sensor
Long Term Stability±0.1% FSO (typically per year)
Operation Life1 million cycles, minimum
CategoryPressure Transmitters
ManufactureWinters Instruments
MpnLM61PR5W3GS16SCL6
SubcategoryLm6 All Stainless Steel Submersible Pressure Transmitter
