category:
Pressure Transmitters
manufacture:
Winters Instruments
mpn:
LST1102S5GT26S
subcategory:
Lst Sanitary Pressure Transmitter
Product Description

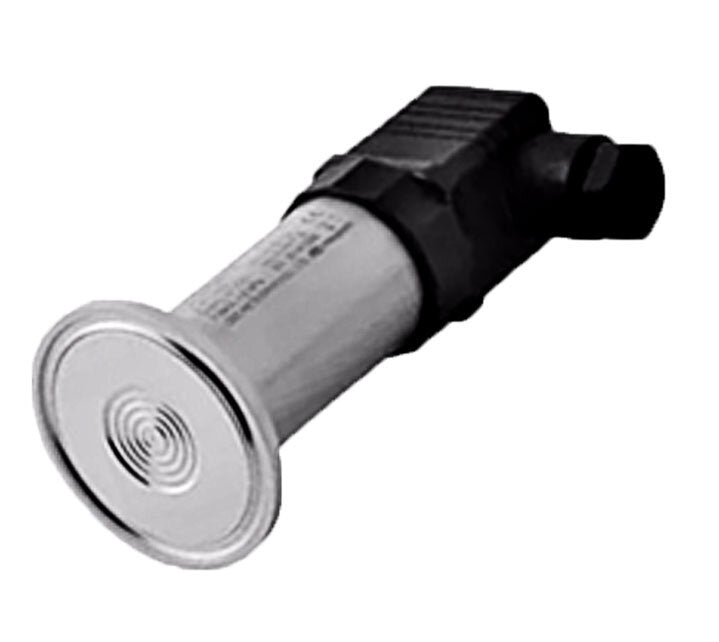

Winters Instruments - LST1102S5GT26S
Features
- Sanitary tri-clamp with all stainless steel construction designed to eliminate debris build-up in the diaphragm
- Compact yet rugged stainless steel housing with highly accurate stainless steel sensor
- Available ranges from vacuum to 5,000 PSI (350 BAR)
- DIN-style electrical connection, cable outlet M12 also available
- ±0.5% accuracy standard, ±0.25% accuracy optional
- CE mark and RoHS compliant
- Electromagnetic protection
- 5-year warranty
Applications
With a hygienic tri-clamp connection, the LST is designed for all sanitary applications including food beverage, dairy, pharmaceutical and bio-technology
Additional Information
Output Signal4…20 mA, 2-wire / Vs
Accuracy±0.5% Full Scale Output, ±0.25% FSO optional
Overload/Burst Pressure 1,500 PSI @ 200%, 5,000 PSI @ 300%
Load ResistanceRL
Long Term Stability±0.25% FSO (typically per year)
Response Time1 ms
Storage Temperature-10 to 70 deg C (14 to 158 deg F)
Operating Temperature-40 to 85 deg C (-40 to 185 deg F)
Insulation Resistance100 MΩ @ 50 VDC
Reverse Polarity ProtectionYes
Electromagnetic ProtectionYes
Enclosure RatingIP65 for DIN 43650-A, IP66 for Cable Outlet / M12
Housing1Cr18Ni9Ti
Wetted Parts316L welded sensor
Process ConnectionsTri-clamp 1.5” (50.5mm), 2.0” (64mm) and 2.5” (78mm)
Operation Life1 million cycles, minimum
Weight185 grams (0.4 pounds)
