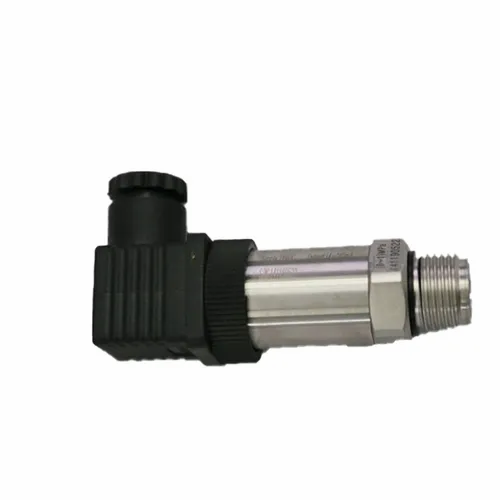

Winters Instruments - LTF1107T5GG26S
Features
- Flush mounted stainless steel diaphragm to eliminate any debris build-up in the pressure cavity
- Compact yet rugged stainless steel housing with highly accurate stainless steel sensor
- Available ranges from vacuum to 10,000 PSI (700 BAR)
- DIN-style electrical connection, cable outlet M12 also available
- ±0.5% accuracy standard, ±0.25% accuracy optional
- CE mark and RoHS compliant
- Electromagnetic protection
- 5 year warranty
Applications
Ideally suited for the pressure measurement of viscous fluids or media which may clog a standard process connection
Additional Information
Output Signal4…20 mA, 2-wire / Vs
Accuracy±0.5% Full Scale Output, ±0.25% FSO optional
Overload/Burst Pressure 1,500 PSI @ 200%, 10,000 PSI @ 300%
Load ResistanceRL
Long Term Stability±0.25% FSO (typically per year)
Response Time1 ms
Storage Temperature-10 to 70 deg C (14 to 158 deg F)
Operating Temperature-40 to 85 deg C (-40 to 185 deg F)
Insulation Resistance100 MΩ @ 50 VDC
Reverse PolarityYes
ProtectionYes
Electromagnetic ProtectionYes
Enclosure RatingIP65 for DIN 43650-A, IP66 for Cable Outlet / M12
Housing1Cr18Ni9Ti
Wetted Parts316L welded sensor
Process ConnectionsG1/4, G1/2, G3/4, G1 and M20*1.5
Operation Life1 million cycles, minimum
Weight185 grams (0.4 pounds)
CategoryPressure Transmitters
ManufactureWinters Instruments
MpnLTF1107T5GG26S
SubcategoryLtf Flush Mount Pressure Transmitter
