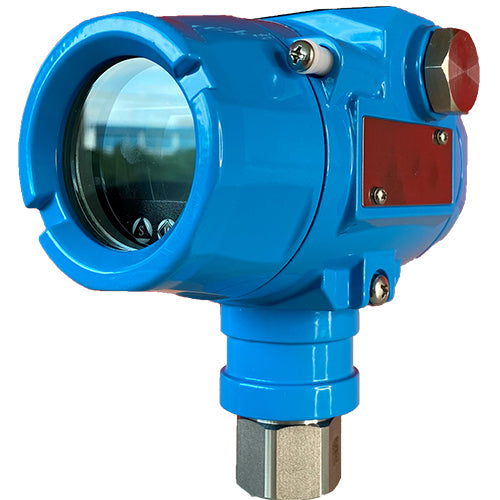

Winters Instruments LY16P02RX Winsmart™ Ly16 Smart Explosion Proof Pressure Transmitter

Winters Instruments LY16P02RX Winsmart™ Ly16 Smart Explosion Proof Pressure Transmitter

Dropship

Get it by Tue, Dec 24 - Sun, Dec 29

SKU SKU:kpi073-LY16P02RX

Regular price $1,839.36 USD
Regular price Sale price $1,839.36 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Pressure Transmitters
manufacture: Winters Instruments
mpn: LY16P02RX
subcategory: Winsmart Ly16 Smart Explosion Proof Pressure Transmitter

Product Description

Winters Instruments - LY16P02RX

Features

  • Microprocessor-based high performing transmitter
  • Explosion-proof smart pressure transmitter for hazardous locations
  • Sour gas NACE0175 compliant,Built-in temperature sensor
  • 0.2% standard; 0.5%, 0.1%, 0.075% or 0.05% optional
  • Simple to operate 3-push button control,HART® or Modbus communications are available
  • Low power option available,Re-zero function for safe field calibration,10:1 rangeability allows for installation in any application,
  • CRN Registered, up to 6,000 psi
  • 5-year warranty

Applications

Pressure monitoring for oil and gas, well head process control, petrochemical installations, power generation equipment and all hazardous locations

Additional Information

Output Signal4/20 mA, 2-wire / V
LCD DisplayLCD display (standard) or without LCD display (optional)
Accuracy 0.2% standard; 0.5%, 0.1%, 0.075% or 0.05% optional
Stability0.1% per year
Temperature RangeWorking: -40/85°C (with display -20/70°C), -40/185°F (without display -4/158°F), Storage: -40/110°C (with display -40/85°C), -40/230°F (without display -40/185°F), Media: silicone oil filling: -40/120°C (-40/248°F)
Working Humidity5-100% at 40°C (104°F)
Pressure Connection1/4” or 1/2” NPTM or F, 1/4” or 1/2” GM (large 10mm orifice)
HousingRugged die-cast aluminum housing, painted blue
Wetted Parts316L SS
Overload Pressure1.5 x rated pressure
Power Consumption
Wake-Up Time6 seconds
Vibration20g, 20Hz…5kHz, According to GB/T 1827.3 / IEC 61298-3 tests, 0.1% URL
Shock20g, 20Hz…5kHz
Available Pressure UnitskPa, Mpa, bar, psi, mmHg, mmH2O, mH2O, inH2O, ftH2O, inHg, mHg, TORR, mbar, g/cm2, kg/cm2, Pa, ATM
Available Temperature UnitsCelsius, Fahrenheit
Protection ClassEMI, ESD, RFI, reverse polarity protected; Surge protection IEC1000-4-5
ApprovalsCSA, for USA Canada, Class I, Division 1, Group A,B,C and D T6
Protection ClassIP66 / IP67
Weight2.9 lbs (1.3 kg)
Operational Life100 million cycles
