category:
Pressure Transmitters
manufacture:
Winters Instruments
mpn:
LY16P04RX
subcategory:
Winsmart Ly16 Smart Explosion Proof Pressure Transmitter
Product Description

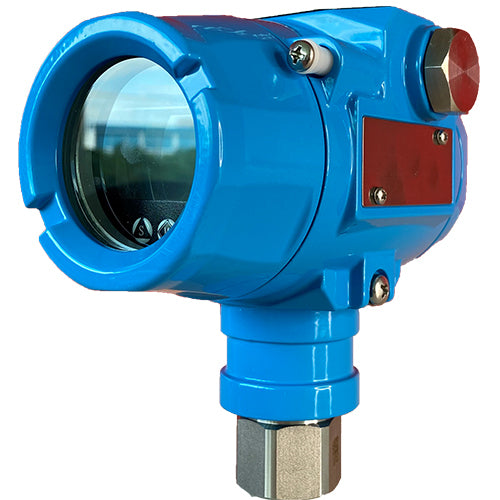

Winters Instruments - LY16P04RX
Features
- Microprocessor-based high performing transmitter
- Explosion-proof smart pressure transmitter for hazardous locations
- Sour gas NACE0175 compliant,Built-in temperature sensor
- 0.2% standard; 0.5%, 0.1%, 0.075% or 0.05% optional
- Simple to operate 3-push button control,HART® or Modbus communications are available
- Low power option available,Re-zero function for safe field calibration,10:1 rangeability allows for installation in any application,
- CRN Registered, up to 6,000 psi
- 5-year warranty
Applications
Pressure monitoring for oil and gas, well head process control, petrochemical installations, power generation equipment and all hazardous locations
Additional Information
Output Signal4/20 mA, 2-wire / V
LCD DisplayLCD display (standard) or without LCD display (optional)
Accuracy 0.2% standard; 0.5%, 0.1%, 0.075% or 0.05% optional
Stability0.1% per year
Temperature RangeWorking: -40/85°C (with display -20/70°C), -40/185°F (without display -4/158°F), Storage: -40/110°C (with display -40/85°C), -40/230°F (without display -40/185°F), Media: silicone oil filling: -40/120°C (-40/248°F)
Working Humidity5-100% at 40°C (104°F)
Pressure Connection1/4” or 1/2” NPTM or F, 1/4” or 1/2” GM (large 10mm orifice)
HousingRugged die-cast aluminum housing, painted blue
Wetted Parts316L SS
Overload Pressure1.5 x rated pressure
Power Consumption
Wake-Up Time6 seconds
Vibration20g, 20Hz…5kHz, According to GB/T 1827.3 / IEC 61298-3 tests, 0.1% URL
Shock20g, 20Hz…5kHz
Available Pressure UnitskPa, Mpa, bar, psi, mmHg, mmH2O, mH2O, inH2O, ftH2O, inHg, mHg, TORR, mbar, g/cm2, kg/cm2, Pa, ATM
Available Temperature UnitsCelsius, Fahrenheit
Protection ClassEMI, ESD, RFI, reverse polarity protected; Surge protection IEC1000-4-5
ApprovalsCSA, for USA Canada, Class I, Division 1, Group A,B,C and D T6
Protection ClassIP66 / IP67
Weight2.9 lbs (1.3 kg)
Operational Life100 million cycles
