category:
Pressure Transmitters
manufacture:
Winters Instruments
mpn:
LY34H1XD3D52D1R5F1B6LS
subcategory:
Winsmart Ly34 Differential Pressure Transmitter
Product Description

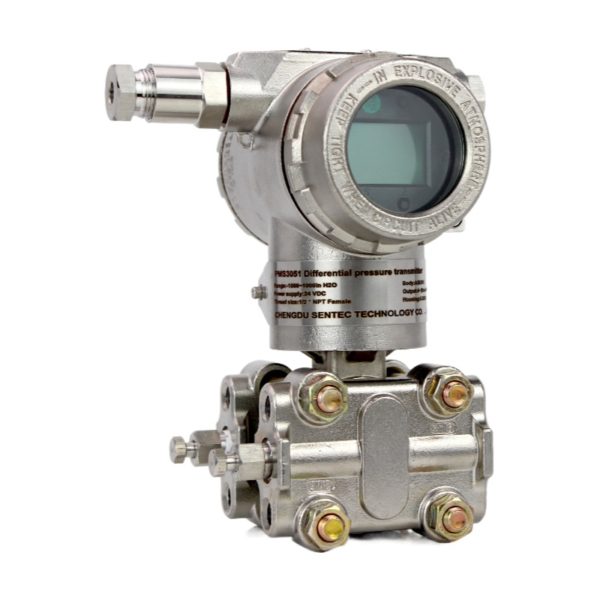

Winters Instruments - LY34H1XD3D52D1R5F1B6LS
Features
- Smart multi-functional digital differential pressure transmitter designed for industrial applications
- Explosion proof and intrinsically safe designs for hazardous locations
- Stainless steel and aluminum housing
- Gauge, absolute and differential pressure measurement
- 0.1% accuracy
- Simple to operate 3-push button control with 5-digit display and 100% bar graph
- 4/20mA plus HART® digital communication
- Simplified re-zero calibration via push-button fuctionality
- 10:1 rangeability allows for installation in any application
Applications
- Ideally suited for hazardous locations requiring either a stainless steel or die-cast aluminum housing.
- Suitable for differential pressure measurement in Oil Gas installations (on-shore and offshore), power generation, including renewable energy facilities, filtration monitoring, tank level and flow measurement in hazardous areas
Additional Information
Output Signal4/20 mA + HART, 2-wire / V
LCD DisplayAvailable with LCD display (standard) or without LCD display (optional)
Accuracy0.1% URL standard
Stability0.2% of URL for two years
Temperature RangesWorking/Media temperature: -25/95°C (with display -13/203°F), -40/185°C (without display -4/158°F), Ambient temperature: -40/60°C (with display -40/140°F), -40/115°C (without display -4/240°F), Storage temperature: -40/110°C (with display -40/85°F), -40/230°C (without display -40/446°F)
Working Humidity0-100% relative humidity
Housing304SS, 316SS, Rugged die-cast aluminum housing (painted Blue)
Pressure Connection2 x 1/4” NPT F, 1/2” NPT F adapters available
Diaphragm316L SS with BUNA-N, Hastelloy® C or Monel or Tantalum plus Vitron or PTFE o-rings optional
Drains Vents304SS or 316SS
Response Time200 ms
Turn on Time2 seconds (with minimum Dam
