category:
Pressure Transmitters
manufacture:
Winters Instruments
mpn:
LY36D701X
subcategory:
Winsmart Ly36 Smart Explosion Proof Differential Pressure Transmitter
Product Description

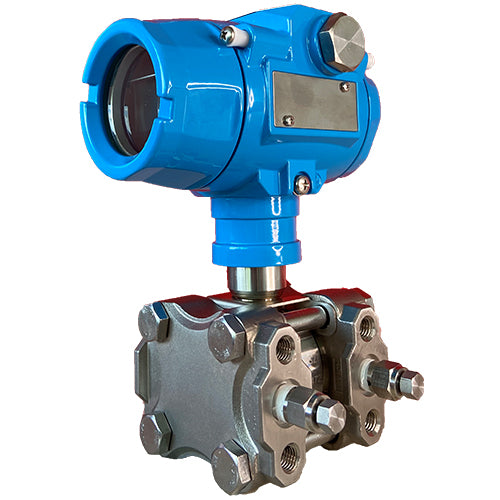

Winters Instruments - LY36D701X
Features
- Monosilicone-based high performing transmitter
- Explosion-proof smart differential pressure transmitter for hazardous locations
- Sour gas NACE0175 compliant
- Built-in temperature sensor
- 0.075% or 0.05% accuracy
- Simple to operate 3-push button control
- HART® or Modbus communications are available
- Low power option available
- Re-zero function for safe field calibration
- 10:1 rangeability allows for installation in any application
- CRN Registered
- 5-year warranty
- Differential pressure transmitters are useful instruments for measuring the difference between two pressures. If you’re looking for a differential pressure transmitter, look no further! Our LY36 smart differential pressure transmitter is one of the top-performing differential pressure transmitters in the market.
Applications
Differential pressure monitoring for oil and gas installations, well head process control, petrochemical installations, power generation equipment and all hazardous locations
Additional Information
Output Signal4/20 mA, 2-wire / V
LCD DisplayAvailable with LCD display (standard) or without LCD display (optional)
Accuracy0.075% URL standard, 0.05% optional
Stability0.2% per 5 years
Temperature RangeWorking: -40/85°C (with display -20/70°C), -40/185°F (without display -4/158°F), Storage: -40/110°C (with display -40/85°C), -40/230°F (without display -40/185°F), Media: silicone oil filling: -40/120°C (-40/248°F)
Working Humidity5-100% at 40°C (104°F)
Pressure Connection1/4” or 1/2” NPTM or F, 1/4” or 1/2” GM (large 12mm orifice)
HousingRugged die-cast aluminum housing, painted blue
Wetted Parts316L SS with PTFE o-ring (Hastelloy® C optional)
Overload PressureMaximum of 3,600 or 6,000 psi
Power Consumption500 mW @ 24 VDC, 20.8 mA (LCD); =493mW @ 24VDC, 20.55mA (without LCD)
Wake Up time6 seconds
Vibration20g, 20Hz…5kHz, According to GB/T 1827.3 / IEC 61298-3 tests, 0.1% URL
