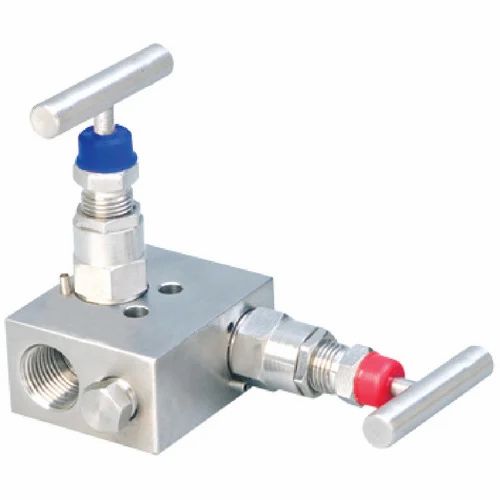

Winters Instruments MVA2SH2F Mva 2 Handle Manifolds

Product Description

Winters Instruments - MVA2SH2F

Features

• Rugged and designed for use with differential pressure transmitters and impulse lines
• 2-handle – 1 isolation valve, 1 vent valve
• An isolation valve is located on the top, and the block and bleed are located on the side (90-degree orientation)
• Available in pipe-to-pipe, pipe-to-flange and flange-to-flange configurations
• Many variants of construction available to handle all media requirements
• Soft and Hard seat options; 6,000 psi and 10,000 psi pressure rated
• PTFE packing standard with Graphoil optional
• CRN available upon request
• 5-year warranty
• Select to open...2 - Handle Flange to Flange
• 2 - Handle Pipe to Flange
• 2 - Handle Pipe to Pipe

Applications

Designed to be perfectly installed with Winters WinSMART™ Series (with M10x45 bolts) and other pressure transmitters|Manifolds are critical in the process and industrial environments for the enabling of shut-downs for the testing, repair and upgrading of instruments
