Product details
category: Manifolds
manufacture: Winters Instruments
mpn: MVA3ASH2DG

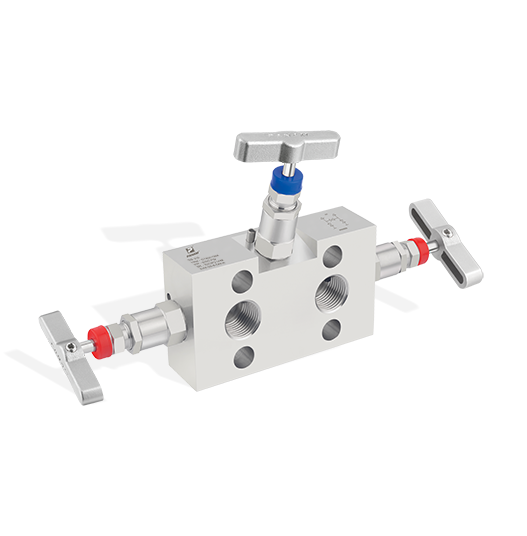

subcategory: Mva 3 Hle Direct Mount Manifold Valve
Product Overview
Features
- Compact, wafer design for direct mounting
- Rugged and designed for use with differential pressure transmitters and impuse lines
- 3-handle – 2 isolation valves, 1 equalizing valve
- Straight and angled pattern to suit all installation requirements
- Many variants of construction available to handle all media requirements
- Soft and Hard seat options; 6,000 psi and 10,000 psi pressure rated
- PTFE packing standard with Graphoil optional
- CRN available upon request
- 5-year warranty
- Select to open...MVA 3- HANDLE DIRECT MOUNT ANGLED
- MVA 3-HANDLE DIRECT MOUNT
Applications
Designed to be perfectly installed with Winters LY36 Series (with M10x45 bolts) and other differential transmitters|Manifolds are critical in the process and industrial environments for the enabling of shut-downs for the testing, repair and upgrading of instruments
Additional Information
NPT Connection1/2” Direct Mount x 1/2” Female NPT
HandlesStraight or Angled
MaterialStainless Steel, other materials available upon request
SeatHard Seat or Soft Seat
Packing MaterialPTFE (standard) or Graphoil (optional)
Max Pressure6,000 psi or 10,000 psi
