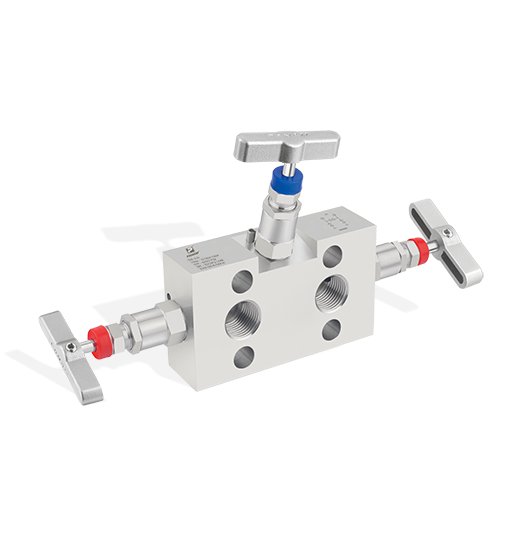

Winters Instruments MVA3SS2DG Mva 3 Handle Direct Mount Manifold Valve

Product Overview

Features

• Compact, wafer design for direct mounting
• Rugged and designed for use with differential pressure transmitters and impuse lines
• 3-handle – 2 isolation valves, 1 equalizing valve
• Straight and angled pattern to suit all installation requirements
• Many variants of construction available to handle all media requirements
• Soft and Hard seat options; 6,000 psi and 10,000 psi pressure rated
• PTFE packing standard with Graphoil optional
• CRN available upon request
• 5-year warranty
• Select to open...MVA 3- HANDLE DIRECT MOUNT ANGLED
• MVA 3-HANDLE DIRECT MOUNT

Applications

Designed to be perfectly installed with Winters LY36 Series (with M10x45 bolts) and other differential transmitters|Manifolds are critical in the process and industrial environments for the enabling of shut-downs for the testing, repair and upgrading of instruments
