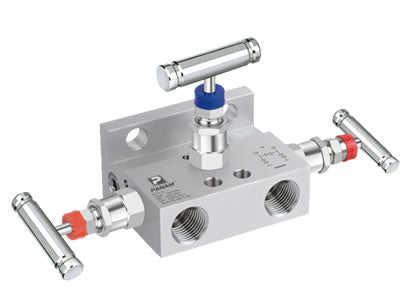

Winters Instruments MVA3SS2P Mva 3 - Handle Manifolds

Winters Instruments - MVA3SS2P

Features

• Rugged and designed for use with differential pressure transmitters and impuse lines
• 3-handle – 2 isolation valves, 1 equalizing valve
• Available in pipe-to-pipe, pipe-to-flange and flange-to-flange configurations
• Many variants of construction available to handle all media requirements
• Soft and Hard seat options; 6,000 psi and 10,000 psi pressure rated
• PTFE packing standard with Graphoil optional
• CRN available upon request
• 5-year warranty
• Select to open...3 - Handle Flange to Flange
• 3 - Handle Pipe to Flange
• 3 - Handle Pipe to Pipe

Applications

Designed to be perfectly installed with Winters LY36 Series (with M10x45 bolts) and other differential transmitters|Manifolds are critical in the process and industrial environments for the enabling of shut-downs for the testing, repair and upgrading of instruments
