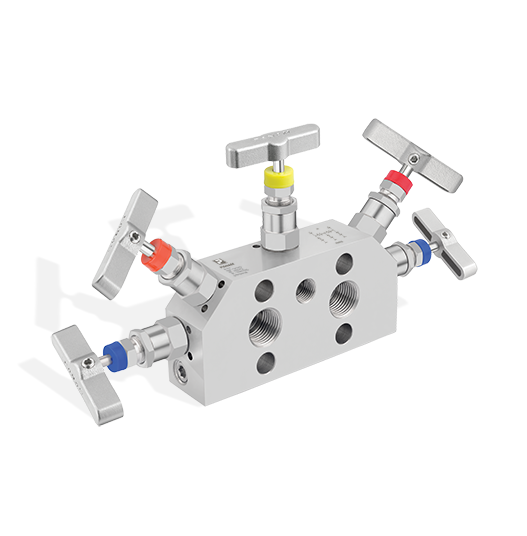

Winters Instruments - MVA5SS2DG
Features
- Compact, wafer design for direct mounting
- Rugged and designed for use with differential pressure transmitters and impulse lines
- 5-handle – 2 isolation valves, 1 equalizing valve and 2 vent valves
- Straight and angled pattern to suit all installation requirements
- Many variants of construction available to handle all media requirements
- Soft and Hard seat options; 6,000 psi and 10,000 psi pressure rated
- PTFE packing standard with Graphoil optional
- CRN available upon request
- 5-year warranty
- Select to open...5 Handle Direct Mount
- MVA 5- Handle Direct Mount Angled
Applications
Designed to be perfectly installed with Winters LY36 Series (with M10x45 bolts) and other differential transmitters|Manifolds are critical in the process and industrial environments for the enabling of shut-downs for the testing, repair and upgrading of instruments
Additional Information
NPT Connection1/2” Direct Mount x 1/2” Female NPT
HandlesStraight or Angled
MaterialStainless Steel, other materials available upon request
SeatHard Seat or Soft Seat
Packing MaterialPTFE (standard) or Graphoil (optional)
Max Pressure6,000 psi or 10,000 psi
CategoryManifolds
ManufactureWinters Instruments
MpnMVA5SS2DG
SubcategoryMva 5 Hle Direct Mount Manifolds
