Product details
category: Manifolds
manufacture: Winters Instruments
mpn: MVA5SS2F
subcategory: Mva 5 Hle Manifolds

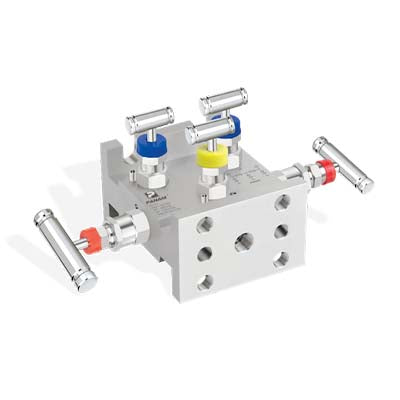

Product Overview
Features
- Rugged and designed for use with differential pressure transmitters and impulse lines
- 5-handle – 2 isolation valves, 1 equalizing valve and 2 vent valves
- Available in pipe-to-pipe, pipe-to-flange and flange-to-flange configurations
- Many variants of construction available to handle all media requirements
- Soft and Hard seat options; 6,000 psi and 10,000 psi pressure rated
- PTFE packing standard with Graphoil optional
- CRN available upon request
- 5-year warranty
- Select to open...5 Handle Pipe to Pipe
Applications
Designed to be perfectly installed with Winters LY36 Series (with M10x45 bolts) and other differential transmitters|Manifolds are critical in the process and industrial environments for the enabling of shut-downs for the testing, repair and upgrading of instruments
Additional Information
NPT Connection1/2” Female x 1/2” Female
HandlesStraight or Angled
MaterialStainless Steel
SeatHard Seat or Soft Seat
Packing MaterialPTFE or Graphoil
Max Pressure10,000 psi
