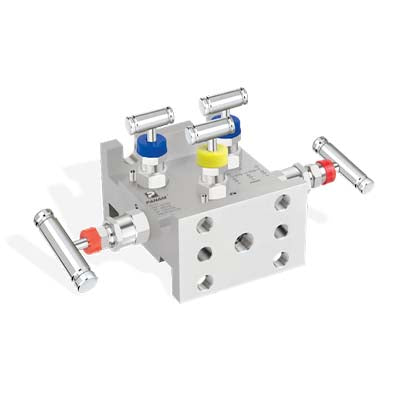

Winters Instruments MVA5SS2P Mva 5 - Handle Manifolds

Product Description

Winters Instruments - MVA5SS2P

Features

• Rugged and designed for use with differential pressure transmitters and impulse lines
• 5-handle – 2 isolation valves, 1 equalizing valve and 2 vent valves
• Available in pipe-to-pipe, pipe-to-flange and flange-to-flange configurations
• Many variants of construction available to handle all media requirements
• Soft and Hard seat options; 6,000 psi and 10,000 psi pressure rated
• PTFE packing standard with Graphoil optional
• CRN available upon request
• 5-year warranty
• Select to open...5 Handle Pipe to Pipe

Applications

Designed to be perfectly installed with Winters LY36 Series (with M10x45 bolts) and other differential transmitters|Manifolds are critical in the process and industrial environments for the enabling of shut-downs for the testing, repair and upgrading of instruments
