category:
Pressure Gauges
manufacture:
Winters Instruments
mpn:
P1S442
subcategory:
P1S 100 Series Pressure Gauge
Product Description

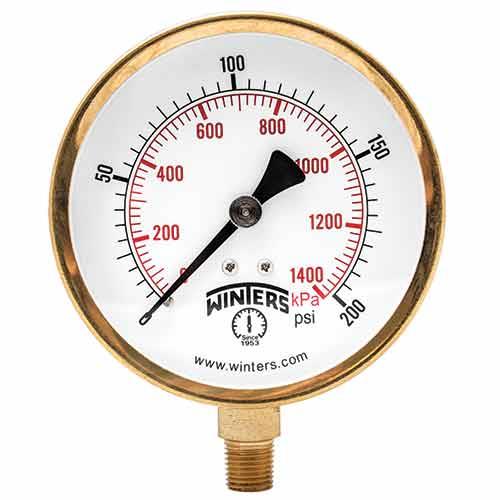

Winters Instruments - P1S442
Features
- High quality, commercial grade gauge at an economical price
- ±1% accuracy
- Steel and aluminum cases
- Brass wetted parts
- ASME B40.100 compliant (EN837-1 available)
- CRN registered
- 5 year warranty
Applications
Commercial installations, plumbing, heating and cooling
Additional Information
Dial3.5” (90mm), 4” (100mm), 4.5” (115mm), 6” (150mm) white aluminum dial with black and red markings
Case3.5” (90mm), 4” (100mm): Steel painted black, 4.5” (115mm): Aluminum, 6” (150mm) Bottom: Steel painted black, 6” (150mm) Back: Aluminum
Lens3.5” (90mm), 4.5” (115mm) bottom connection, 6” (150mm): Glass, 4" (100mm), 4.5” (115mm) back connection: Polycarbonate
Ring3.5” (90mm), 4” (100mm), 4.5” (115mm) bottom connection: Polished brass, 6” (150mm) bottom connection: Steel painted black, 4.5" (115mm) back connection, 6" (150mm) back connection: SS, polished
SocketBrass
Connection1/4” NPT standard
Bourdon TubePhosphor bronze
PointerBlack aluminum
WeldingSilver alloy
Over-pressure Limit25% of full scale value
Working PressureMaximum 75% of full scale value
Ambient/Process Temperature-40°F to 200°F (-40°C to 93°C)
Accuracy±1% ANSI/ASME Grade 1A
Enclosure RatingIP52
WarningThis product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
