Additional Information

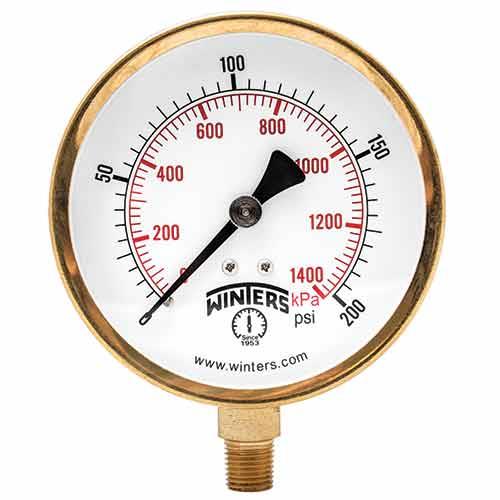

Dial3.5” (90mm), 4” (100mm), 4.5” (115mm), 6” (150mm) white aluminum dial with black and red markings
Case3.5” (90mm), 4” (100mm): Steel painted black, 4.5” (115mm): Aluminum, 6” (150mm) Bottom: Steel painted black, 6” (150mm) Back: Aluminum
Lens3.5” (90mm), 4.5” (115mm) bottom connection, 6” (150mm): Glass, 4" (100mm), 4.5” (115mm) back connection: Polycarbonate
Ring3.5” (90mm), 4” (100mm), 4.5” (115mm) bottom connection: Polished brass, 6” (150mm) bottom connection: Steel painted black, 4.5" (115mm) back connection, 6" (150mm) back connection: SS, polished
SocketBrass
Connection1/4” NPT standard
Bourdon TubePhosphor bronze
PointerBlack aluminum
WeldingSilver alloy
Over-pressure Limit25% of full scale value
Working PressureMaximum 75% of full scale value
Ambient/Process Temperature-40°F to 200°F (-40°C to 93°C)
Accuracy±1% ANSI/ASME Grade 1A
Enclosure RatingIP52
WarningThis product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
