category:
Pressure Gauges
manufacture:
Winters Instruments
mpn:
P3S6017
subcategory:
P3S 300 Series Pressure Gauge

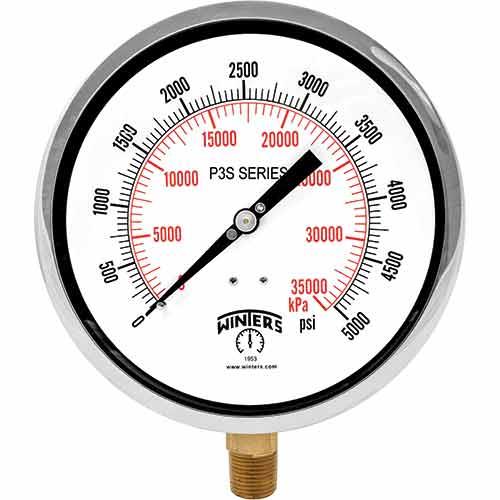

Winters Instruments - P3S6017
Features
- Heavy duty, highly accurate aluminum case gauge
- ±0.5% accuracy
- Brass or stainless steel internals
- Large, easy-to-read dial
- StabiliZR®️ dampened movement available on 4.5″ (115mm) dial size
- ASME B40.100 compliant
- CRN registered
- 5 year warranty
Applications
- Intended for non-clogging installations
- Use on air, steam, oil, fresh water
- Boilers, control rooms and chillers
Additional Information
Dial (For Stainless Steel Internals)4.5” (115mm), 6” (150mm), 8.5” (215mm) and 10” (250mm) white aluminum with black and red markings
Case (For Stainless Steel Internals)Aluminum painted black
Front Flange (For Stainless Steel Internals)4.5” (115mm), 6” (150mm): SS, polished, 8.5” (215mm), 10” (250mm): Aluminum painted black
Back Flange (For Stainless Steel Internals)4.5” (115mm), 6” (150mm): Steel, painted black (optional), 8.5” (215mm), 10” (250mm): Aluminum, painted black
Lens (For Stainless Steel Internals)4.5” (115mm), 6” (150mm): Glass, 8.5” (200mm), 10” (250mm): Polycarbonate
Ring (For Stainless Steel Internals)4.5” (115mm), 6” (150mm): SS, polished, 8.5” (215mm), 10” (250 mm): Aluminum
Socket (For Stainless Steel Internals)316L SS
Connection (For Stainless Steel Internals)1/4” NPT for ranges up to 600 psi (4,137 kPa), 1/2” NPT for ranges over 600 psi (4,137 kPa)
Bourdon Tube (For Stainless Steel Internals)316L SS
Movement (For Stainless Steel Internals)304 SS
Pointer (For Stainless Steel Internals)Aluminum, anodized black, micrometer adjustable
Welding (For Stainless Steel Internals)316L SS TIG Argonarc
Over-Pressure Limit (For Stainless Steel Internals)30% for pressures up to 600 psi (4,137 kPa), 25% for pressures over 600 psi to 1,400 psi (4,137 kPa to 9,653 kPa), 15% for pressures over 1,400 psi (9,653 kPa)
Working Pressure (For Stainless Steel Internals)Maximum 75% of full scale value
Ambient/Process Temperature (For Stainless Steel Internals)-40°F to 150°F (-40°C to 65°C)
Accuracy (For Stainless Steel Internals)±0.5% ANSI/ASME Grade 2A
Enclosure Rating (For Stainless Steel Internals)IP52
Warning (For Stainless Steel Internals)N/A
Dial (For Brass Internals)4.5” (115mm), 6” (150mm), 8.5” (215mm) and 10” (250mm) white aluminum with black and red markings
Case (For Brass Internals)Aluminum painted black
Front Flange (For Brass Internals)4.5” (115mm), 6” (150mm): SS, polished, 8.5” (215mm), 10” (250mm): Aluminum painted black
Back Flange (For Brass Internals)4.5” (115mm), 6” (150mm): Steel, painted black (optional), 8.5” (215mm), 10” (250mm): Aluminum, painted black
Lens (For Brass Internals)4.5” (115mm), 6” (150mm): Glass, 8.5” (200mm), 10” (250mm): Polycarbonate
Ring (For Brass Internals)4.5” (115mm), 6” (150mm): SS, polished, 8.5” (215mm), 10” (250 mm): Aluminum
Socket (For Brass Internals)Brass
Connection (For Brass Internals)1/4” NPT for ranges up to 600 psi (4,137 kPa), 1/2” NPT for ranges over 600 psi (4,137 kPa)
Bourdon Tube (For Brass Internals)Phosphor bronze for ranges up to 600 psi (4,137 kPa), 316L SS for ranges over 600 psi (4,137 kPa)
Movement (For Brass Internals)Brass
Pointer (For Brass Internals)Aluminum, anodized black, micrometer adjustable
Welding (For Brass Internals)Tin/copper alloy for ranges up to 600 psi (4,137 kPa), Silver alloy for ranges over 600 psi (4,137 kPa)
Over-Pressure Limit (For Brass Internals)30% for pressures up to 600 psi (4,137 kPa), 25% for pressures over 600 psi to 1,400 psi (4,137 kPa to 9,653 kPa), 15% for pressures over 1,400 psi (9,653 kPa)
Working Pressure (For Brass Internals)Maximum 75% of full scale value
Ambient/Process Temperature (For Brass Internals)-40°F to 150°F (-40°C to 65°C)
Accuracy (For Brass Internals)±0.5% ANSI/ASME Grade 2A
Enclosure Rating (For Brass Internals)IP52
Warning (For Brass Internals)Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
