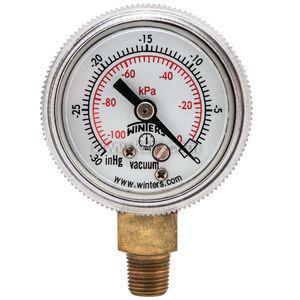

Winters Instruments - P9S90217
Features
- A general-purpose gauge that is serviceable and pulsation resistant
- 1.5″ (40mm) to 3.5″ (90mm) dial sizes
- Dampened movement combined with a “flutterless” pointer
- Removable lens
- Zero-adjustment
- ASME B40.100 compliant
- CRN registered
- ±2-1-2% accuracy
- 5 year warranty
Applications
Compressors, filters, regulators, water pumps, paint sprayers and a variety of other rapid pressure fluctuation applications
Additional Information
Dial1.5” (40mm), 2” (50mm), 2.5” (63mm), 3.5” (90mm)white aluminum with black and red markings
CaseSteel, painted black
LensAcrylic, threaded
SocketBrass
Connection1/8” NPT or 1/4” NPT standard
Bourdon TubePhosphor bronze
MovementBrass (flutterless) with zero adjustment
PointerAluminum, black
Welding 1,000 psi: 60% tin 40% lead,≥1,000 psi: silver alloy
Over-pressure Limit25% of full scale value
Working PressureMaximum 75% of full scale value
Ambient/Process Temperature-40°F to 150°F (-40°C to 65°C)
Accuracy±2-1-2% ANSI/ASME Grade A
Warning This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
CategoryPressure Gauges
ManufactureWinters Instruments
MpnP9S90217
SubcategoryP9S 90 Series Pressure Gauge
