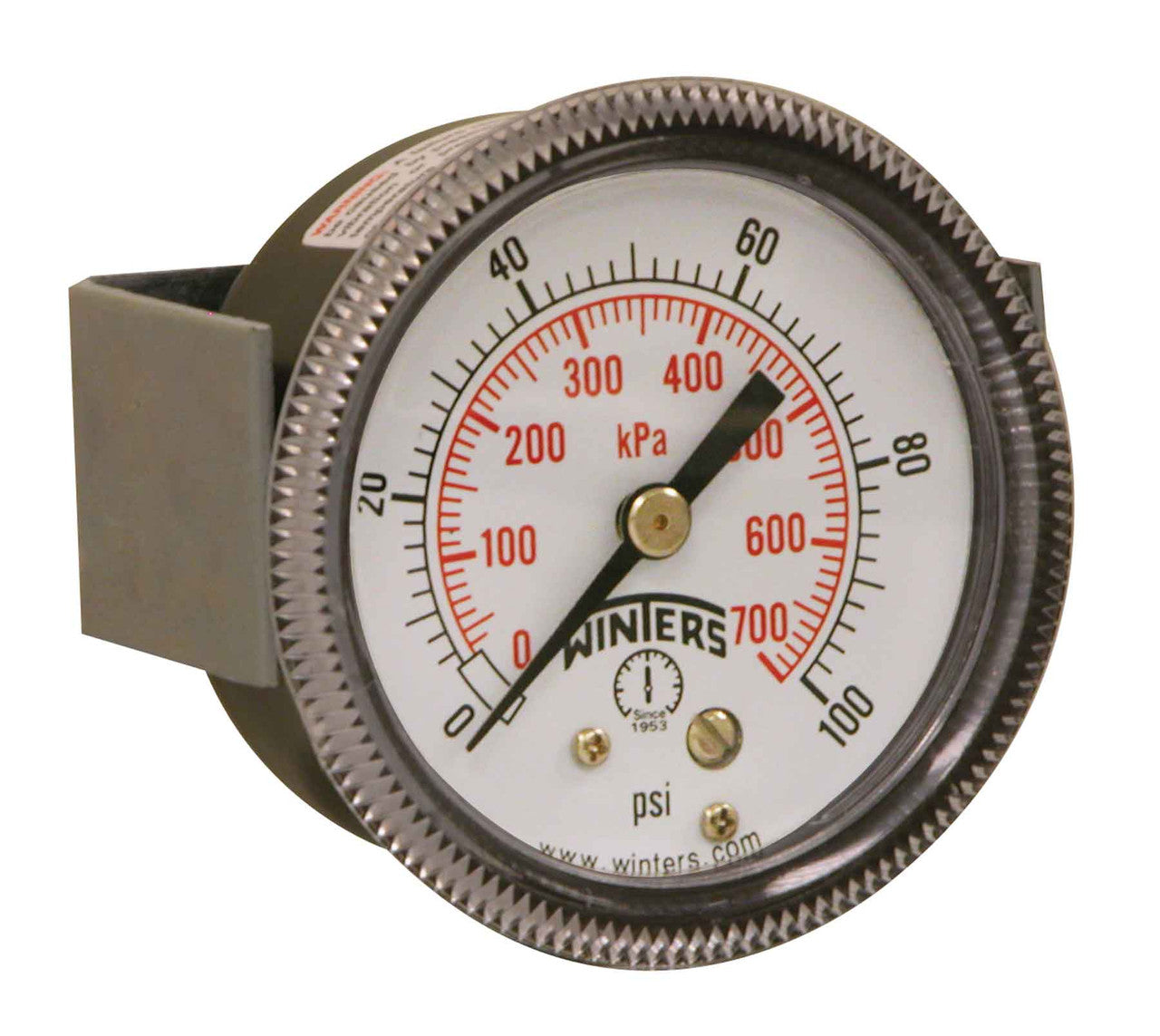

Winters Instruments - P9U901409UC
Features
- General purpose panel mounted gauge with 1.5” (40mm) to 3.5” (90mm) dial sizes
- Flutterless pointer
- Dampened movement
- Removable lens
- Zero-adjustment
- ±2-1-2% accuracy
- ASME B40.100 compliant
- CRN registered
- 5 year warranty
Applications
Panels, compressor equipment, water and oil pumps, where rapid pressure fluctuations or system vibration require a stable pointer
Additional Information
Dial1.5” (40mm), 2” (50mm), 2.5” (63mm), 3.5” (90mm), white aluminum with black and red markings
CaseSteel, painted black
LensAcrylic, threaded
SocketBrass
Connection1/8” NPT or 1/4” NPT standard
Bourdon TubePhosphor bronze
MovementBrass (flutterless movement)
PointerAluminum, black
WeldingSilver alloy
Over-Pressure Limit25% of full scale value
Working PressureMaximum 75% of full scale value
Ambient/Process Temperature-40°F to 150°F (-40°C to 65°C)
Accuracy±2-1-2% ANSI/ASME Grade A
Enclosure RatingIP52
Warning This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
CategoryPressure Gauges
ManufactureWinters Instruments
MpnP9U901409UC
SubcategoryP9U 90 Series Panel Mounted Pressure Gauge
