category:
Pressure Gauges
manufacture:
Winters Instruments
mpn:
P9U901440UC
subcategory:
P9U 90 Series Panel Mounted Pressure Gauge
Product Description

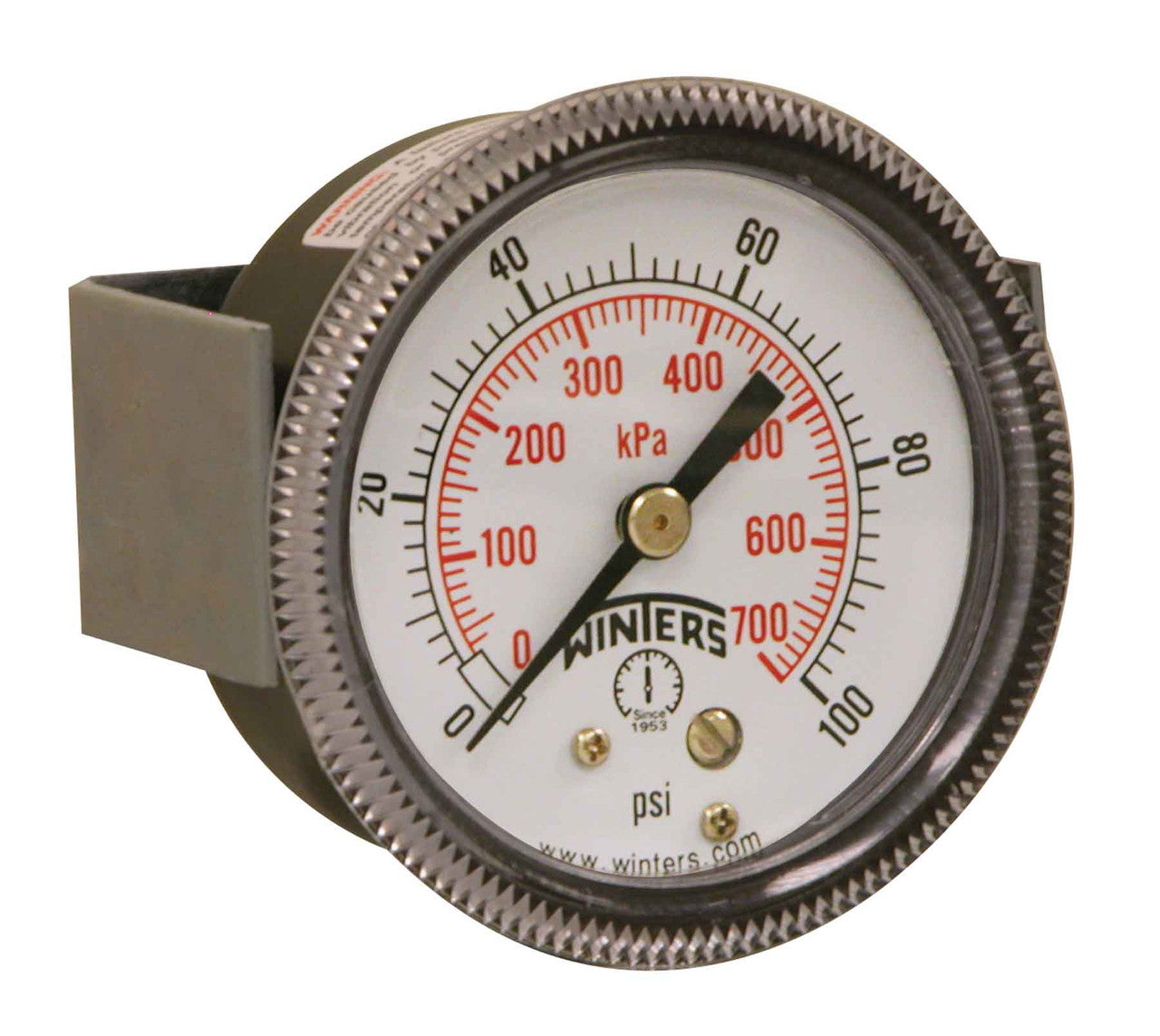

Winters Instruments - P9U901440UC
Features
- General purpose panel mounted gauge with 1.5” (40mm) to 3.5” (90mm) dial sizes
- Flutterless pointer
- Dampened movement
- Removable lens
- Zero-adjustment
- ±2-1-2% accuracy
- ASME B40.100 compliant
- CRN registered
- 5 year warranty
Applications
Panels, compressor equipment, water and oil pumps, where rapid pressure fluctuations or system vibration require a stable pointer
Additional Information
Dial1.5” (40mm), 2” (50mm), 2.5” (63mm), 3.5” (90mm), white aluminum with black and red markings
CaseSteel, painted black
LensAcrylic, threaded
SocketBrass
Connection1/8” NPT or 1/4” NPT standard
Bourdon TubePhosphor bronze
MovementBrass (flutterless movement)
PointerAluminum, black
WeldingSilver alloy
Over-Pressure Limit25% of full scale value
Working PressureMaximum 75% of full scale value
Ambient/Process Temperature-40°F to 150°F (-40°C to 65°C)
Accuracy±2-1-2% ANSI/ASME Grade A
Enclosure RatingIP52
