category:
Pressure Gauges
manufacture:
Winters Instruments
mpn:
PAG20805
subcategory:
Pag 3A Pharmaceutical Food Beverage Dairy Sanitary Gauge
Product Description

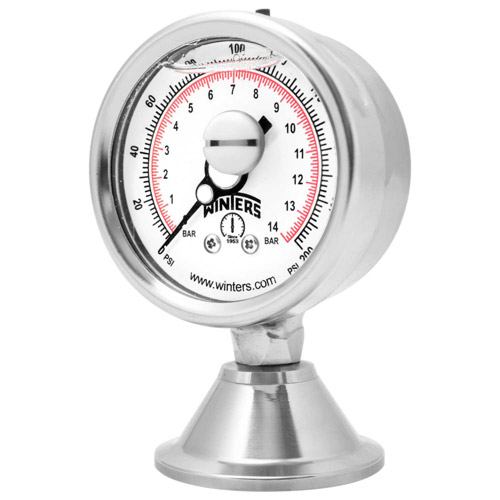

Winters Instruments - PAG20805
Features
- Designed for food, beverage dairy and pharmaceutical applications
- ±0.75% full scale accuracy
- Food grade glycerin filling standard
- Re-zero feature standard
- Crack/breakage-resistant polycarbonate lens standard
- Clean-In-Place design
- Steam-In-Place design
- Autoclavable
- ASME B40.100 compliant
- CRN registered
- 5 year warranty
Applications
Built to withstand the harshest of sanitary applications and where 3A approval is required
Additional Information
Dial2.5” (63mm), 4” (100mm) aluminum
Case304 SS, polished
Repeatability0.25% of full scale
Linearity0.25% of full scale
Lens3/16" thick polycarbonate
Over-range Capability50% of full scale
Hysteresis0.25% of full scale
CIP Temperature Limit250°F (121°C) continuous
SIP Temperature Limit300°F (149°C) 1 hour, dry
Bourdon Tube316L SS, welded
Socket316L SS, welded
Storage Temperature-22°F to 195°F (-30°C to 91°C)
Temperature EffectLess than 0.16% per 10°F (5.5°C) change in process or ambient temperature
Actuating FillFood grade glycerin standard (Mineral oil, silicone and Neobee-20 optional)
Case FluidFood grade glycerin standard (Dry, mineral oil, silicone and Neobee-20 optional)
Pulsation DampeningStandard
Re-zero FeatureExternally adjustable micrometer pointer
Wetted Parts316L SS, Ra
Bezel304 SS, polished
Ambient Temperature40°F to 140°F (4°C to 60°C)
Process Temperature0°F to 250°F (-18°C to 121°C)
Accuracy±0.75% of full scale value
