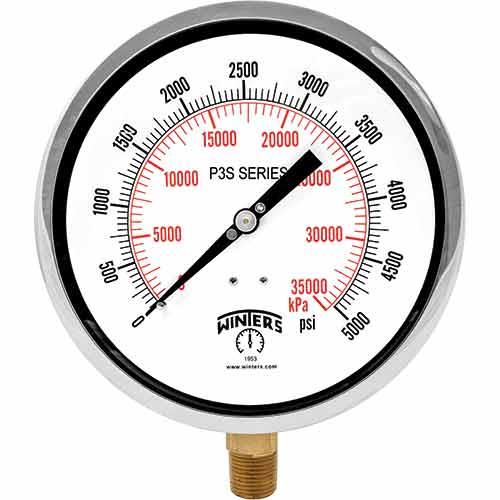

Winters Instruments - PBC1242
Features
- One piece forged brass case designed for severe service conditions
- Easy-to-read single or dual scale dial
- ASME B40.100 compliant
- CRN registered
- 5 year warranty
Applications
High vibration industrial installations including hydraulic and fracking systems
Additional Information
Dial2.5” (63mm), 4” (100mm)
CaseForged brass, rugged, 2.5" (63mm): Liquid filled case standard, 4" (100mm): dry case standard
LensPolycarbonate
Ring2.5” (63mm): Gold-coloured ABS, 4” (100mm): Polished brass
SocketBrass
PointerAluminum, anodized black
Connection2.5” (63mm): 1/4” NPT bottom or back, 4” (100mm): 1/4” NPT or 1/2” NPT bottom
Wetted PartsBrass
Ambient/Process Temperature-40°F to 150°F (-40°C to 65°C)
Accuracy2.5” (63mm): ±1.5% of full scale, 4”(100mm): ±1% ANSI/ASME Grade 1A
Enclosure RatingIP65
Warning This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
CategoryPressure Gauges
ManufactureWinters Instruments
MpnPBC1242
SubcategoryPbc Forged Brass Case Pressure Gauge
