category:
Pressure Gauges
manufacture:
Winters Instruments
mpn:
PCT324LF
subcategory:
Pct Contractor Pressure Gauge Pct Lf Lead Free Contractor Gauge
Product Description

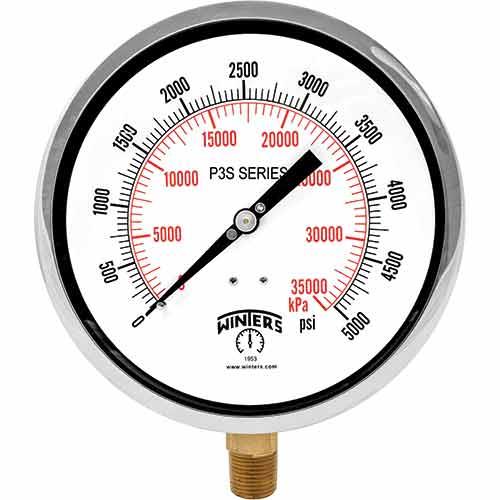

Winters Instruments - PCT324LF
Features
- Economical 4.5” (115mm) stainless steel case gauge
- Brass or lead free brass wetted parts
- ±1% accuracy
- Zero adjustment screw
- 1/4” NPT
- Restricted orifice
- ASME B40.100 compliant
- CRN registered
- Lead free version NSF-61-372 certified
- 5 year warranty
Applications
- Most commercial air, water and steam services (with syphon)
- Lead free version for potable water systems
Additional Information
Dial4.5” (115mm) white aluminum dial with black and red markings
Case304 SS
LensAcrylic
Ring304 SS
SocketPCT: Brass, PCT-LF: Lead free brass, NSF-61-372 certified
Connection1/4” NPT standard
Bourdon TubePhosphor bronze
MovementPCT: Brass, PCT-LF: Lead free brass, NSF-61-372 certified
PointerAluminum, anodized black, recalibrator screw
WeldingSilver solder
Over-Pressure Limit25% for pressures up to 1,450 psi (9,998 kPa), 15% for pressures over 1,500 psi (10,342 kPa)
Working PressureMaximum 75% of full scale value
Ambient/Process Temperature-40°F to 200°F (-40°C to 93°C)
Accuracy±1% ANSI/ASME Grade 1A
Enclosure RatingIP52
WarningThis product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
