category:
Pressure Gauges
manufacture:
Winters Instruments
mpn:
PETM217
subcategory:
Pet Economy Test Gauge Pet Lf Lead Free Economy Test Gauge
Product Description

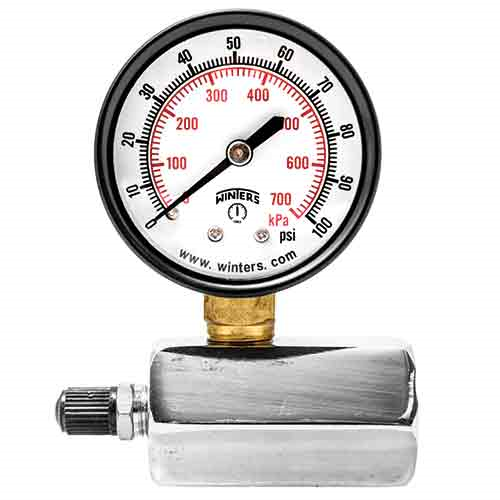

Winters Instruments - PETM217
Features
- Economical pressure gauge and valve body assembly used for pressure testing
- Bleed port and plated housing on the gas test assembly
- Swivel hose adaptor on the Water Test Gauge
- Black steel case
- Brass or lead free brass wetted parts
- Dual scale (PSI/kPa)
- ±3-2-3% accuracy
- ASME B40.100 compliant
- CRN registered
- Lead free version NSF-61-372 certified
- 5 year warranty
Applications
Residential commercial pressure testing of gas, air and water lines
Additional Information
Dial2" (50mm), 2.5" (63mm) white aluminum with black and red markings
CaseSteel painted black
LensPETG: Polycarbonate, PETM, PETM-LF, PETW, PETW-LF: Acrylic
RingSteel, painted black
Bourdon TubePET: Phosphor bronze, PET-LF: Lead free phosphor bronze, NSF-61-372 certified
MovementPET: Brass, PET-LF: Lead-Free brass, NSF-61-372 certified
PointerAluminum, black
ConnectionPETG: 3/4” NPTF, PETM, PETM-LF, PETW, PETW-LF: 3/4” female swivel hose connection
Maximum PointerAvailable on Water Test Gauge only
Welding#50 tin solder
Gas Test Ambient/Process Temperature-40°F to 150°F (-40°C to 65°C)
Water Test Ambient/Process Temperature 32°F to 150°F (0°C to 65°C)
Working Pressure Maximum 75% of full scale value
Accuracy ±3-2-3% ANSI/ASME Grade B
Enclosure Rating IP52
WarningThis product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
