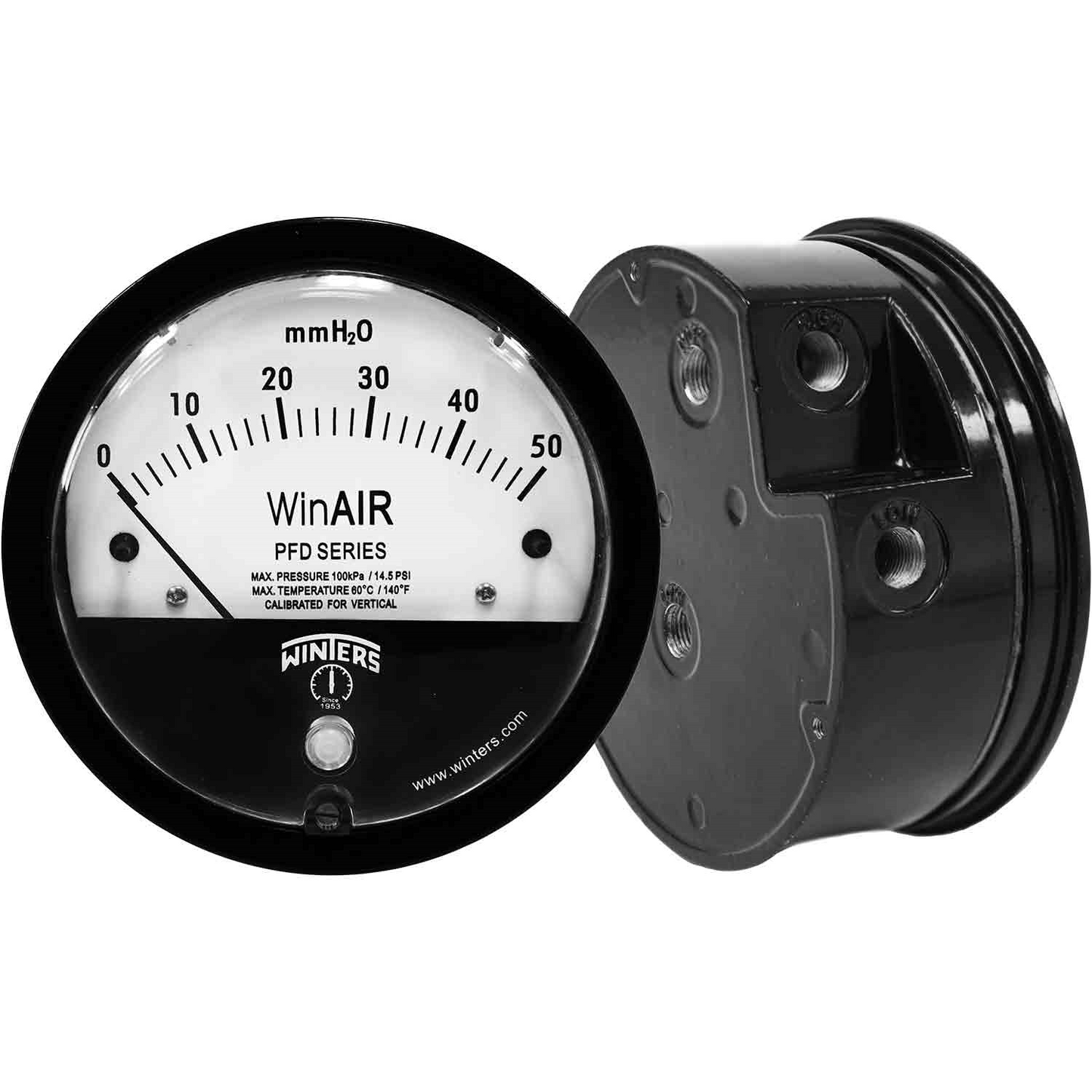

Winters Instruments - PFD40311
Features
- Resistance-free differential gauge for all air and non-corrosive gas installations
- Industrial grade die-cast aluminum case
- Extreme temperature tolerance with o-ring seal
- Easily accessible re-zero adjustment screw
- 2% full scale accuracy*
- 3 mounting adapters with screws included, other mounting accessories also available
- 5 year warranty
Applications
Low pressure and differential monitoring for air and non-combustible gases including filters, blowers, vacuums, air handlers and clean rooms
Additional Information
Dial4" (100mm), white aluminum with black markings
CaseDie-cast black aluminum
LensPolycarbonate lens with UV Protection
RingThreaded die-cast black aluminum
Connection1/8" NPTF high low pressure taps, side back
MovementResistance-free and magnetic
PointerAluminum, anodized black
Over-pressure LimitMaximum pressure of 14.5 psi / 100 kPa
Ambient / Process Temperature-40°F to 140°F (-40°C to 60°C), 14°F to 140°F (-10°C to 60°C)
Accuracy±2% of full scale value*
Enclosure RatingIP67
WarningThis product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
NotePFD to only be mounted in a vertical position
CategoryPressure Gauges
ManufactureWinters Instruments
MpnPFD40311
SubcategoryPfd Winair Differential Pressure Gauge
