category:
Pressure Gauges
manufacture:
Winters Instruments
mpn:
PFE3935
subcategory:
Pfe Sprinkler Gauge
Product Description

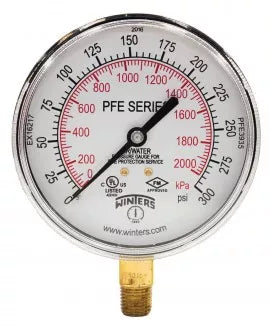

Winters Instruments - PFE3935
Features
- Specially designed for fire sprinkler systems
- Suitable for air and water media
- Corrosion resistant case
- Dual scale (psi/kPa, psi/bar, psi/kg/cm2) and single scale (psi) pressure ratings
- Approved by Factory Mutual (FM) and listed by Underwriter Laboratory (UL-393), USA and Canada
- Internal pointer travel over-stop
- ASME B40.100 compliant
- CRN registered
- 5 year warranty
Applications
Ideally suited for fire sprinkler systems and fire fighting equipment
Additional Information
Dial3.5" (90mm), white aluminum with black and red markings
CaseBlack plastic
LensPolycarbonate, threaded
SocketBrass
Connection1/4" NPT standard, bottom (1/4" bspt bottom option)
Bourdon TubePhosphor bronze
MovementBrass
PointerAluminum, black
WeldingSilver Alloy
Working PressureMaximum 75% of full scale value
Ambient/Process Temperature-40°F to 150°F (-40°C to 65°C)
Accuracy3-2-3% ASME Grade B
Enclosure RatingIP52
