category:
Pressure Gauges
manufacture:
Winters Instruments
mpn:
PFG1738
subcategory:
Pfg Refrigeration Gauge
Product Description

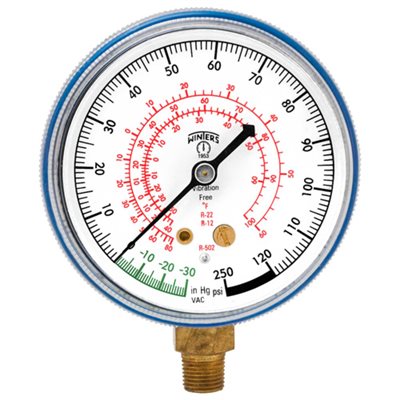

Winters Instruments - PFG1738
Features
- 2.5” (63mm) to 6” (150mm) durable gauges
- 2.5” (63mm) dial have a blue and red coloured case for easy identification
- Dual scale (psi/°F)
- Flutterless movement on the 2.5” (63mm)
- Chlorofluorocarbon (CFC) temperature scales (R-12, R-22 R-502)
- Brass internals
- 1/4” NPT standard
- ASME B40.100 compliant
- CRN registered
- 5 year warranty
Applications
Refrigeration equipment and refrigeration recovery equipment
Additional Information
Dial2.5” (63mm), 4” (100mm), 6” (150mm): White aluminum
Case2.5” (63mm): Plastic, colour coded, blue for low pressure and red for high pressure, 4” (100mm), 6” (150mm): Steel, painted black
Lens2.5” (63mm): Plexiglass, threaded, 4” (100mm), 6” (150mm): Glass
Ring4” (100mm): Brass, polished,
Connection1/8” NPT or 1/4” NPT standard
Restrictor ScrewStandard
Recalibrator ScrewStandard
Bourdon Tube2.5” (63mm): Phosphor bronze, vibration free (flutterless movement), 4” (100mm), 6” (150mm): Phosphor bronze
PointerAluminum, anodized black
Welding#50 tin solder
Over-Pressure Limit25% of full scale value
Scalepsi/°F (R-12/R-22/R-502)
Working PressureMaximum 75% of full scale value
Ambient/Process Temperature-40°F to 158°F (-40°C to 70°C)
Accuracy2.5” (63mm): ±2% of full scale, 4” (100mm), 6” (150mm): ±1% ANSI/ASME Grade 1A
Enclosure RatingIP52
