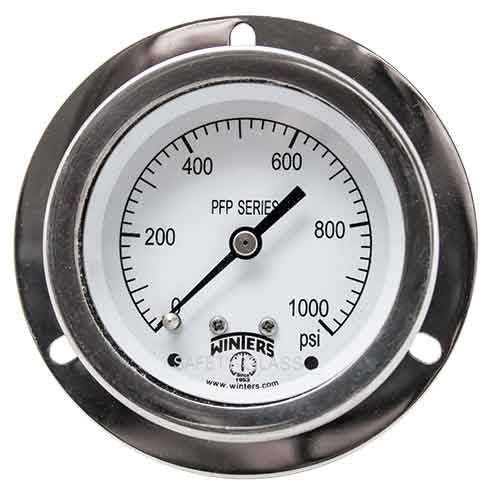

Winters Instruments - PFP3776R1
Features
- Liquid filled stainless steel case protects against extreme vibration and pulsation
- Lower back mount with front flange for panel mounting
- Bayonet ring
- Dual and single scale available (psi/kPa psi only)
- Stainless steel wetted parts
- Restricted orifice standard on dual scale (optional on single scale)
- Safety glass
- ASME B40.100 compliant (EN837-1 available)
- RoHS compliant
- CRN registered
- 5 year warranty
Applications
Outdoor and severe ambient and process conditions|Use where harmful vibration and pulsation are present|Hydraulic equipment, oil field equipment, pumps, compressors and process systems
Additional Information
Dial2.5” (63mm) white aluminum with black and red markings
CaseAISI 304 SS
LensSafety glass
RingAISI 304 SS
Socket316L SS welded one-piece socket
Connection1/4” NPT
Bourdon Tube316L SS, drawn seamless
Movement304 SS
PointerAluminum, anodized black
WeldingLaser welded socket to case
Fill LiquidGlycerin
Over-Pressure Limit25% for pressures up to 1,450 psi (9,998 kPa), 15% for pressures over 1,450 psi (9,998 kPa)
Fill PlugBuna N (silicone rubber option)
Lens Ring Gasket Buna N (silicone rubber option)
Working PressureMaximum 75% of full scale value
Ambient TemperatureDry: -40°F to 250°F (-40°C to 120°C), Glycerin filled: -4°F to 150°F (-20°C to 65°C)
Process Temperature-40°F to 250°F (-40°C to 120°C)
Accuracy±1.5% of full scale
Enclosure RatingNEMA 4X/IP66, EN60529-1 (IEC529-1)
CategoryPressure Gauges
ManufactureWinters Instruments
MpnPFP3776R1
SubcategoryPfp Premium Stainless Steel Liquid Filled Pressure Gauge For Panel Mounting
