category:
Pressure Gauges
manufacture:
Winters Instruments
mpn:
PLP352
subcategory:
Plp Low Pressure Gauge
Product Description

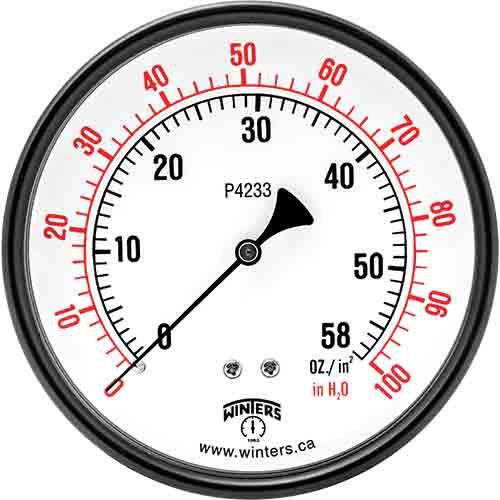

Winters Instruments - PLP352
Features
- Highly accurate reading of low pressures
- Brass or stainless steel wetted parts
- Ranges from 15” H2O/oz to +10 psi
- Overpressure protection on some models (OP)
- ASME B40.100 compliant
- CRN registered
- 5 year warranty
Applications
Suitable for measuring gaseous media both corrosive and non-corrosive|Used to measure natural gas pressure as well air flow indication and leak detection|Vacuum pumps, air compressors, air filters, gas burners, vacuum ovens, suction regulators and respirators
Additional Information
Dial(For Stainless Steel Internals)2.5” (63mm), 4” (100mm), 4.5” (115mm) and 6” (150mm), white aluminum with black and red markings
Case(For Stainless Steel Internals)2.5” (63mm), 4” (100mm): AISI 304 SS, 4.5” (115mm), 6” (150mm): Aluminum, painted black
Lens(For Stainless Steel Internals)2.5” (63mm): Polycarbonate, 4” (100mm): Styrene-acrylonitrile resin, 4.5” (115mm), 6” (150mm): Glass
Ring(For Stainless Steel Internals)2.5” (63mm), 4” (100mm): No ring, 4.5” (115mm), 6” (150mm): Aluminum
Socket(For Stainless Steel Internals)AISI 316 SS
Connection(For Stainless Steel Internals)1/4” NPT standard
Diaphragm Element(For Stainless Steel Internals)AISI 316 SS
Movement(For Stainless Steel Internals)AISI 316 SS
Pointer(For Stainless Steel Internals)Aluminum, anodized black
Welding(For Stainless Steel Internals)TIG
Working Pressure(For Stainless Steel Internals)75% of full scale value
Over-pressure Limit(For Stainless Steel Internals)30% of full scale value
Ambient/Process Temperature(For Stainless Steel Internals)-40°F to 150°F (-40°C to 65°C)
Accuracy(For Stainless Steel Internals)±1.6% of full scale
Enclosure Rating(For Stainless Steel Internals)IP52
Warning (For Stainless Steel Internals)N/A
Dial(For Brass Internals)2.5” (63mm), 4” (100mm), 4.5” (115mm) and 6” (150mm), white aluminum with black and red markings
Case(For Brass Internals)2.5” (63mm), 4” (100mm): Steel, painted black, 4.5” (115mm), 6” (150mm): Cast aluminum, painted black
Lens(For Brass Internals)2.5” (63mm), 4” (100mm): Polycarbonate, 4.5” (115mm), 6” (150mm): Glass
Ring(For Brass Internals)2.5”(63mm): No ring, 4” (100mm): Steel, 4.5” (115mm), 6” (150mm): Aluminum
Socket(For Brass Internals)Brass
Connection(For Brass Internals)1/4” NPT standard
Diaphragm Element(For Brass Internals)Phosphor bronze
Movement(For Brass Internals)2.5” (63mm): Engineering plastic upper and lower plate with brass pinion and sector, 4” (100mm), 4.5” (115mm), 6” (150mm): Brass
Pointer(For Brass Internals)Aluminum, anodized black
Welding(For Brass Internals)Solder/brazed
Working Pressure(For Brass Internals)60% of full scale value (fluctuating) 75% of full scale value (static)
Over-pressure Limit(For Brass Internals)30% of full scale value, up to 200% with overpressure protection (OP) option
Ambient/Process Temperature(For Brass Internals)-40°F to 150°F (-40°C to 65°C)
Accuracy(For Brass Internals)±3-2-3% ANSI/ASME Grade B
Enclosure Rating(For Brass Internals)IP52
Warning (brass internals only)(For Brass Internals)Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
