category:
Pressure Gauges
manufacture:
Winters Instruments
mpn:
PPC5460ZR
subcategory:
Ppc Zr Stabilizr Process Gauge
Product Description

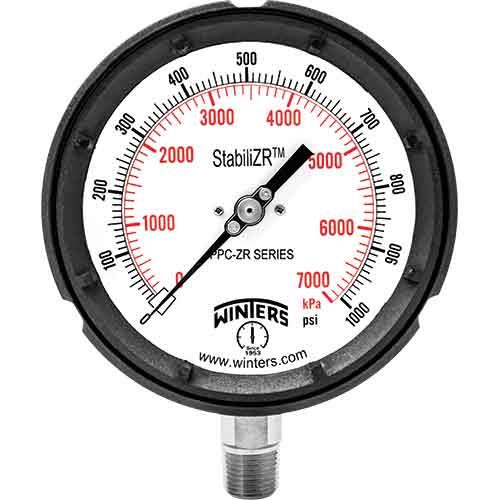

Winters Instruments - PPC5460ZR
Features
- StabiliZR®️ dampened movement minimizes effects of pulsation and vibration as effectively as liquid filled gauges
- Solid phenolic front and polypropylene pressure relief back safety
- case
- ±0.5% accuracy
- Stainless steel full rotary movement
- Micrometer adjustable pointer for ease in calibration
- Under and overload stops
- 316L stainless steel or brass wetted parts standard
- Restricted orifice standard on dual scale (optional on single scale)
- ASME B40.100 compliant
- CRN registered
- 5 year warranty
Applications
- Ideally suited for process, chemical, petroleum and power industries
- Suitable for non-clogging corrosive media
- Used where operator safety is a requirement
- Processes where pulsation and vibration exist
Additional Information
Dial(For Stainless Steel Internals)4.5” (115mm) white aluminum with black and red markings
Case(For Stainless Steel Internals)Black phenolic, with pressure relief back, solid front, integral back flange
Solid Wall(For Stainless Steel Internals)Phenolic
Pressure Relief Back(For Stainless Steel Internals)Polypropylene
Window(For Stainless Steel Internals)Polycarbonate
Ring(For Stainless Steel Internals)Phenolic
Pointer(For Stainless Steel Internals)Aluminum, anodized black, micrometer adjustable
Socket(For Stainless Steel Internals)316L SS
Connection(For Stainless Steel Internals)1/4” NPT or 1/2” NPT standard, bottom or back
Bourdon Tube(For Stainless Steel Internals)316L SS, drawn seamless
Movement(For Stainless Steel Internals)304 SS with under and overload stops
Gasket Materials(For Stainless Steel Internals)Dry glycerin filled gauges: Black NBR, Silicone filled gauges: Brown NBR
Welding(For Stainless Steel Internals)TIG
Over-pressure Limit (For Stainless Steel Internals)25% for pressures below 1,500 psi (10,341 kPa), 15% for pressures 1,500 psi to 8,700 psi (10,341 kPa to 59,984 kPa), 10% for pressures above 8,700 psi (59,984 kPa)
Working Pressure(For Stainless Steel Internals)Maximum 75% of full scale value
Ambient Temperature(For Stainless Steel Internals)Dry: -40°F to 250°F (-40°C to 120°C), Glycerin Filled: -4°F to 150°F (-20°C to 65°C)
Process Temperature(For Stainless Steel Internals)-40°F to 250°F (-40°C to 120°C)
Accuracy(For Stainless Steel Internals)±0.5% ANSI/ASME Grade 2A
Enclosure Rating(For Stainless Steel Internals)IP65
Warning(For Stainless Steel Internals)N/A
Dial(For Brass Internals)4.5” (115mm) white aluminum with black and red markings
Case(For Brass Internals)Black phenolic, with pressure relief back, solid front, integral back flange
Solid Wall(For Brass Internals)Phenolic
Pressure Relief Back(For Brass Internals)Polypropylene
Window(For Brass Internals)Polycarbonate
Ring(For Brass Internals)Phenolic
Pointer(For Brass Internals)Aluminum, anodized black, micrometer adjustable
Socket(For Brass Internals)OT 58 brass
Connection(For Brass Internals)1/4” NPT or 1/2” NPT standard, bottom or back
Bourdon Tube(For Brass Internals)Phosphor bronze
Movement(For Brass Internals)304 SS with under and overload stops
Gasket Materials(For Brass Internals)Dry glycerin filled gauges: Black NBR, Silicone filled gauges: Brown NBR
Welding(For Brass Internals)Silver alloy
Over-pressure Limit (For Brass Internals)25% for pressures below 1,500 psi (10,341 kPa), 15% for pressures 1,500 psi to 8,700 psi (10,341 kPa to 59,984 kPa), 10% for pressures above 8,700 psi (59,984 kPa)
Working Pressure(For Brass Internals)Maximum 75% of full scale value
Ambient Temperature(For Brass Internals)Dry: -40°F to 250°F (-40°C to 120°C), Glycerin Filled: -4°F to 150°F (-20°C to 65°C)
Process Temperature(For Brass Internals)-40°F to 150°F (-40°C to 65°C)
Accuracy(For Brass Internals)±0.5% ANSI/ASME Grade 2A
Enclosure Rating(For Brass Internals)IP65
Warning (brass internals only)(For Brass Internals)Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
