category:
Pressure Gauges
manufacture:
Winters Instruments
mpn:
PSC309
subcategory:
Psc Safety Case Pressure Gauge
Product Description

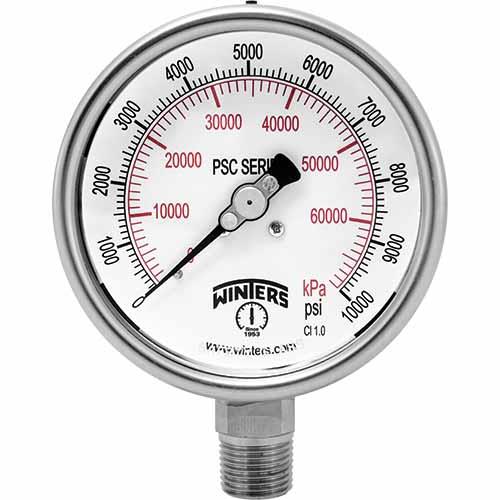

Winters Instruments - PSC309
Features
- Solid front blowout back for the ultimate in gauge safety
- Full rotary movement and micrometer pointer for ease in calibration
- Overload stop
- Stainless steel case, socket and internals
- Safety glass lens
- Restrictor orifice standard
- ASME B40.100 (EN837-1 available)
- RoHS compliant
- CRN registered
- 5 year warranty
Applications
Used where operator safety is a must
Additional Information
Dial4” (100mm), 4.5” (115mm), 6” (150mm), white aluminum with black and red markings
Case304 SS case with blowout back
Lens4” (100mm), 6” (150mm): Laminated safety glass, 4.5” (115mm): Tempered safety glass
RingSS bayonet
Socket316L SS
Connection1/4” or 1/2” NPT bottom
Bourdon Tube316L SS
Movement304 SS with overload stop
PointerAluminum, anodized black, micrometer adjustable
Over-Pressure Limit25% for pressures up to 1,450 psi (9,998 kPa), 15% for pressures over 1,450 psi (9,998 kPa)
Working PressureMaximum 75% of full scale value
Ambient/Process Temperature-40°F to 150°F (-40°C to 65°C)
Accuracy4” (100mm), 6” (150mm): ±1% ANSI/ASME Grade 1A, 4.5” (115mm): ±0.5% ANSI/ASME Grade 2A
Enclosure Rating4" (100mm), 6" (150mm): IP67, EN60529-1 (IEC529-1), 4.5" (115mm): IP65, EN60529-1 (IEC529-1)
