category:
Pressure Gauges
manufacture:
Winters Instruments
mpn:
PSG42005
subcategory:
Psg Shaeffer Pressure Gauge
Product Description

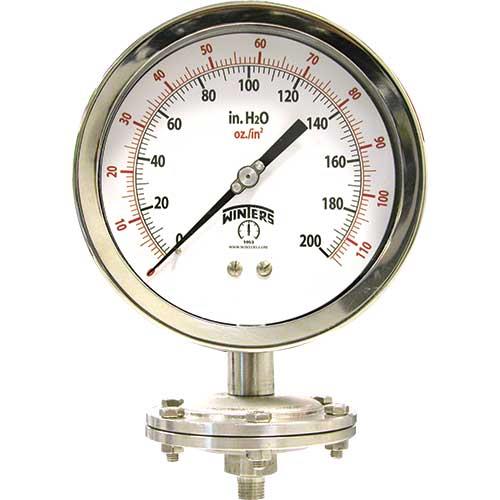

Winters Instruments - PSG42005
Features
- A combination pressure gauge and diaphragm seal forming one unique instrument that measures low pressures where protection from the process media is required
- Bottom connection only
- All stainless steel construction
- A variety of materials available
- ASME B40.100 compliant
- CRN registered
- 5 year warranty
Applications
- Used for low pressure corrosive media where diaphragm seal protection is needed
- Processes where low or high temperature will affect seal fill fluid
Additional Information
Dial4” (100mm), 6” (150mm) white aluminum with black markings
Case304 SS
Upper FlangeSS (neck and base movements)
Lower Flange316L SS bottom connection
LensAcrylic
Connection1/2” NPTM bottom (female optional)
Diaphragm Element316 SS, 316 SSl PTFE lined, (Tantalum option)
MovementAll SS - Push rod / connecting link and segment
PointerAdjustable pointer - aluminum
Wetted Parts316 SS (other materials available upon request)
Ambient Temperature-13°F to 150°F (-25°C to 65°C)
Process Temperature212°F (100°C) Maximum
Accuracy±1.5% of full scale
Enclosure RatingIP54
