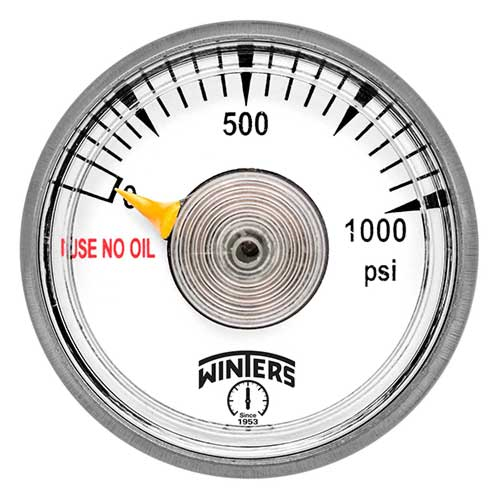

Winters Instruments - PSP1250600
Features
- Reliable, small diameter, low profile gauge
- 1” (25mm) to 1.5” (40mm) sizes
- 1/8” NPT socket
- Direct drive (no linkages or hairsprings) eliminating premature failure from the gear and movement
- Safety over-pressure port on the lens
- “Use No Oil” for use in oxygen service
- ASME B40.100 compliant
- CRN registered
- UL listed for 1.25” and 1.5” gauges
- 5 year warranty
Applications
Commonly used on portable pneumatic equipment as compressors, hand-held sprayers, pressurized recreational guns, oxygen tanks and regulators, pumps and fire extinguishers
Additional Information
Dial1” (25mm), 1 1/8” (30mm), 1.25” (32mm) or 1.5” (40mm) white aluminum with black markings
Case1” (25mm:) Nickel plated brass, Others: 304 SS
LensPlexiglass
Spiral/Socket60 to 2,000 psi: Brass, 3,000 psi and above: 304 SS
Connection1/8” NPT standard, back
Pointer2,000 psi and below: Brass, 3,000 psi and above: 304 SS
Over-pressure Limit10% of full scale value, 25% fo full scale value (0-3,000 psi, UL404 listed)
Working PressureMaximum 75% of full scale value
Ambient/Process Temperature-40°F to 150°F (-40°C to 65°C)
Accuracy±3-2-3% ANSI/ASME Grade B
Enclosure RatingIP65
Warning (brass internals only)Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
CategoryPressure Gauges
ManufactureWinters Instruments
MpnPSP1250600
SubcategoryPsp High Volume Oem Spiral Tube Pressure Gauge
