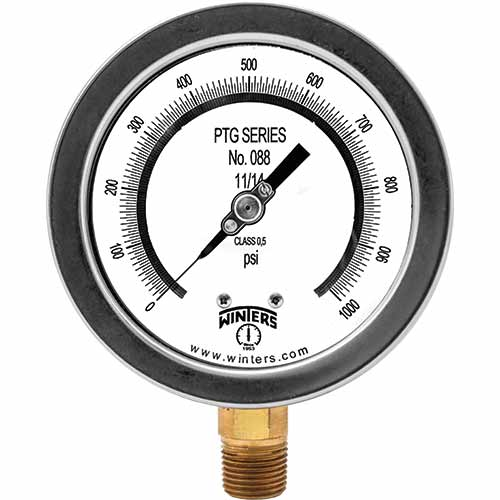

Winters Instruments - PTG4001
Features
- Highly accurate ±0.5% complete with calibration certificate traceable to NIST standards
- Mirrored anti-parallax dial
- Knife-edge pointer
- Protective carrying and storage case available
- ASME B40.100 compliant
- CRN registered
- 5 year warranty
Applications
Designed to be used where accuracy and repeatability are of prime importance|Used in laboratories and instrument testing facilities
Additional Information
DialWhite aluminum with black markings and mirror band for precise instrument readings
CaseAISI 304 SS
Lens4" (100mm): Polycarbonate, 6" (150mm): Glass
RingAISI 304 SS
SocketBrass or Stainless Steel
Connection1/4” NPT or 1/2” NPT standard, bottom
Bourdon TubePhosphor bronze or Stainless Steel
MovementBrass or Stainless Steel
PointerAluminum, anodized black, micrometer adjustable, knife-edge
WeldingSilver alloy
Over-Pressure Limit30% of full scale value
Working PressureMaximum 75% of full scale value
Calibration Conditions68°F (±5.4°F), 20°C (±3°C) for ambient and process temperatures at atmospheric pressure
Ambient/Process Temperature-4°F to 150°F (-20°C to 65°C)
Accuracy±0.5% ANSI/ASME Grade 2A
Enclosure RatingIP65
WarningThis product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
CategoryPressure Gauges
ManufactureWinters Instruments
MpnPTG4001
SubcategoryPtg Test Gauge
