category:
Pressure Gauges
manufacture:
Winters Instruments
mpn:
PTG4010
subcategory:
Ptg Test Gauge
Product Description

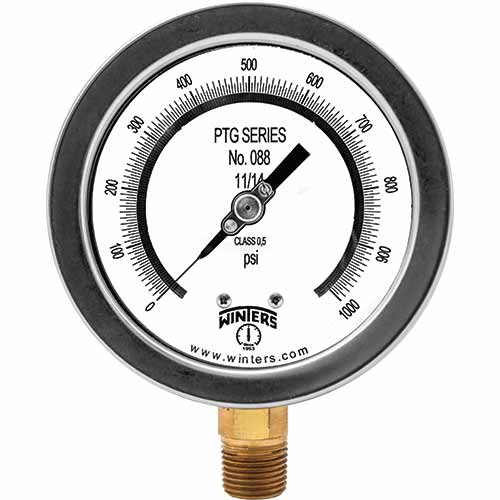

Winters Instruments - PTG4010
Features
- Highly accurate ±0.5% complete with calibration certificate traceable to NIST standards
- Mirrored anti-parallax dial
- Knife-edge pointer
- Protective carrying and storage case available
- ASME B40.100 compliant
- CRN registered
- 5 year warranty
Applications
Designed to be used where accuracy and repeatability are of prime importance|Used in laboratories and instrument testing facilities
Additional Information
DialWhite aluminum with black markings and mirror band for precise instrument readings
CaseAISI 304 SS
Lens4" (100mm): Polycarbonate, 6" (150mm): Glass
RingAISI 304 SS
SocketBrass or Stainless Steel
Connection1/4” NPT or 1/2” NPT standard, bottom
Bourdon TubePhosphor bronze or Stainless Steel
MovementBrass or Stainless Steel
PointerAluminum, anodized black, micrometer adjustable, knife-edge
WeldingSilver alloy
Over-Pressure Limit30% of full scale value
Working PressureMaximum 75% of full scale value
Calibration Conditions68°F (±5.4°F), 20°C (±3°C) for ambient and process temperatures at atmospheric pressure
Ambient/Process Temperature-4°F to 150°F (-20°C to 65°C)
Accuracy±0.5% ANSI/ASME Grade 2A
Enclosure RatingIP65
