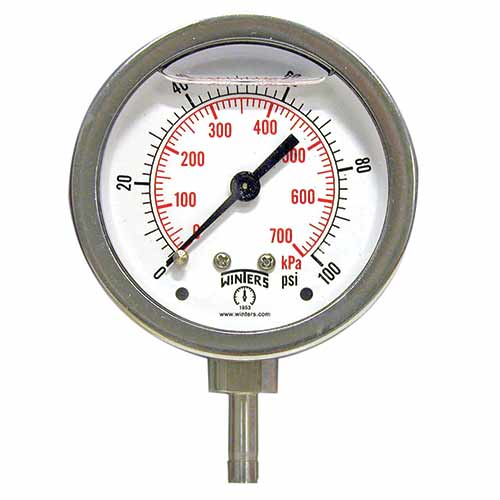

Winters Instruments - PTS861-TS
Features
- Gauge designed to be used with most standard double ferrule tube fittings, such as Parker A-Lok®
- Heavy duty, stainless steel, liquid-filled gauge
- Back, bottom, or panel mount configurations
- ±1.5% accuracy
- Facilitates 360° orientation
- Elimination of leak point
- Teflon® free connection
- ASME B40.100 compliant
- CRN registered
- 5 year warranty
Applications
Specifically designed to be utilized with tube fitting applications|Allows installation where space is limited|Used where PTFE free connection is needed|Used where gauge alignment is critical
Additional Information
Dial2.5” (63mm) aluminum with red and black markings
CaseGrade 304 SS
LensPolycarbonate
Ring304 SS, bayonet
Block316L SS
Socket316L SS
Connection1/4” Tube Stub
Bourdon Tube316L SS
Movement304 SS
PointerAluminum, anodized black
WeldingLaser welded socket to case
Fill LiquidGlycerin
Over-pressure Limit15% of full scale
Gasket MaterialsBuna N
Working Pressure75% of full scale
Ambient/Process TemperatureDry: -40°F to 200°F (-40°C to 93°C), Glycerin filled: -4°F to 150°F (-20°C to 65°C)
Accuracy±1.5% of full scale
Enclosure RatingIP66 per EN60529-1 (IEC529-1)
CategoryPressure Gauges
ManufactureWinters Instruments
MpnPTS861-TS
SubcategoryPts Tube Stub Pressure Gauge
