category:
Pressure Gauges
manufacture:
Winters Instruments
mpn:
PWL2724
subcategory:
Pwl Welding Gauge

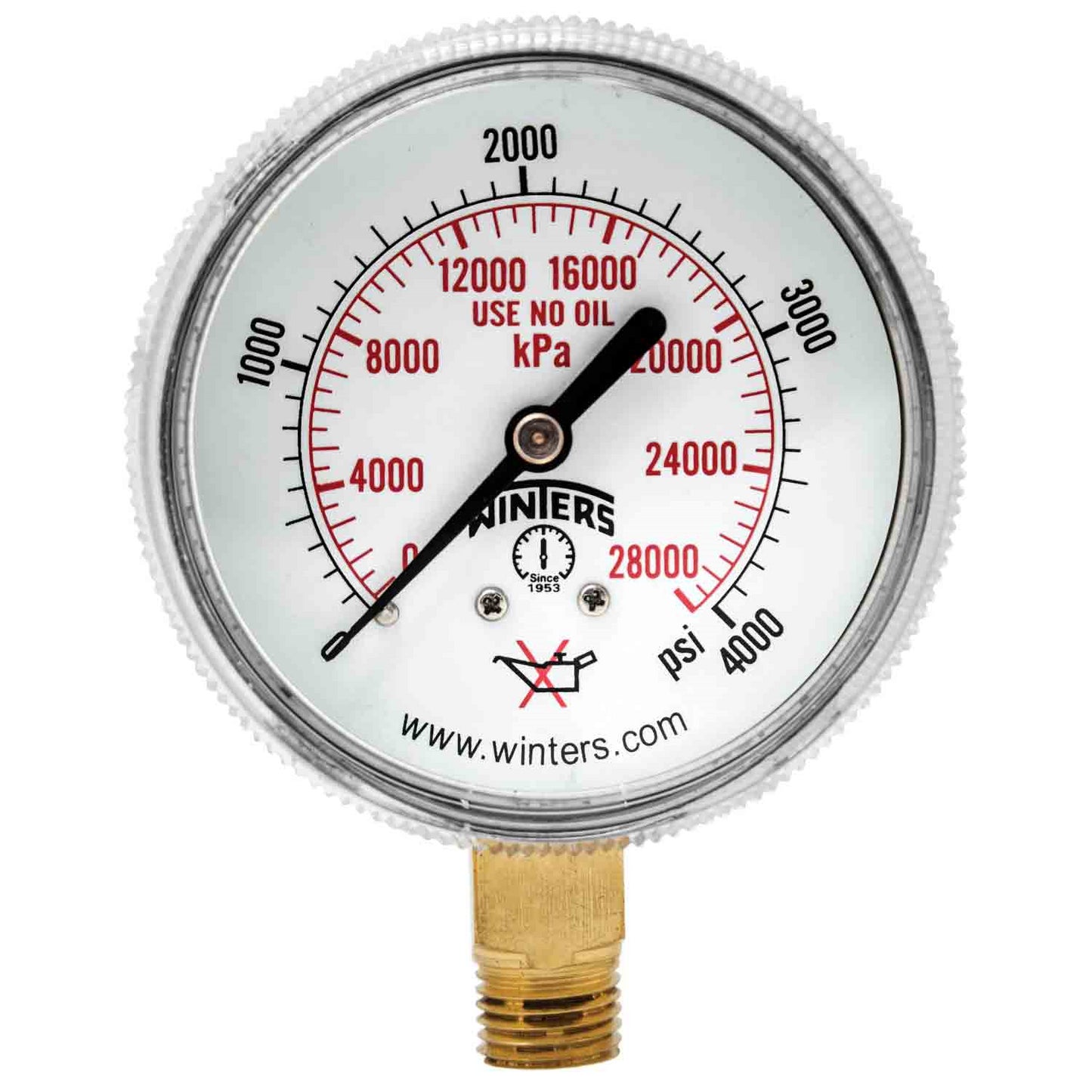

Winters Instruments - PWL2724
Features
- Economical, non-sparking brass case gauge
- 1.5” (40mm), 2” (50mm) and 2.5” (63mm) brass case
- UL listing on the 4,000 psi range
- “USE NO OIL” on dial
- Brass socket
- Threaded-on polycarbonate lens
- ASME B40.100 compliant
- CRN registered
- 5 year warranty
Applications
Welding tank regulators or manifolds, beverage dispensing regulators and other pressurized tanks|Used on the down stream side of a regulator and the high pressures are UL listed for measuring cylinder gases
Additional Information
Dial1.5" (40mm), 2” (50mm), 2.5” (63mm) white aluminum with black and red markings
CaseBrass, polished
LensPolycarbonate, threaded
SocketBrass
Connection1.5" (40mm): 1/8" NPT bottom, 2" (50mm), 2.5" (63mm): 1/4” NPT bottom
Bourdon TubePhosphor bronze
MovementBrass
PointerAluminum, painted black
WeldingSilver alloy
Over-pressure Limit25% of full scale value
Working PressureMaximum 75% of full scale value
Ambient/Process Temperature-40°F to 150°F (-40°C to 65°C)
Accuracy±3-2-3% ANSI/ASME Grade B
Enclosure RatingIP52
