Product details
category: Pressure Gauges

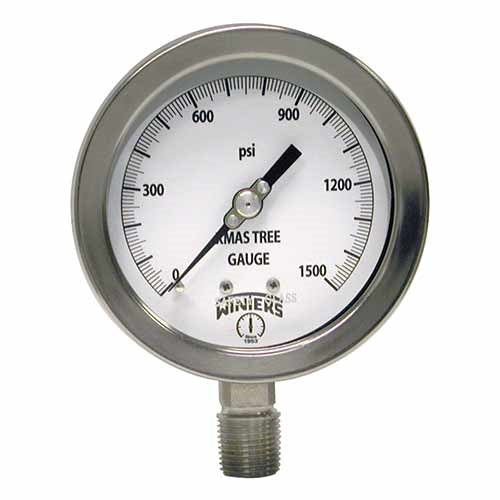

manufacture: Winters Instruments
mpn: PXT1134
subcategory: Pxt Xmas Tree Gauge
Product Overview
Features
- High quality, heavy duty gauge ideal for corrosive environments
- Stainless steel liquid filled gauge (dry optional)
- 1/2” NPT bottom
- Stainless steel wetted parts
- Heavy duty movement and Bourdon Tube
- Restrictor screw standard
- ASME B40.100 compliant
- 5 year warranty
Applications
Outdoor and severe ambient and process conditions|Where harmful vibration and pulsation are present|Designed to the specific needs of oil field equipment
Additional Information
Dial4” (100mm) white aluminum with black markings
CaseAISI 304 SS
LensSafety glass standard; acrylic optional
RingAISI 304 SS
SocketWelded, 316L SS
Connection1/2” NPT standard, 1/4” NPT available
Bourdon Tube316L SS, seamless drawn
Movement304 SS with under and overload stops
PointerAluminum, anodized black, micrometer adjustable
WeldingTIG
Fill LiquidGlycerin
Over-pressure Limit25% for pressures up to 1,450 psi (9,998 kPa), 15% for pressures over 1,450 psi (9,998 kPa)
Gasket MaterialEPDM
Working PressureMaximum 75% of full scale value
Ambient/Process TemperatureDry: -40°F to 200°F (-40°C to 93°C), Glycerin filled: -4°F to 150°F (-20°C to 65°C)
Accuracy±1% ANSI/ASME Grade 1A
Enclosure RatingIP66 per EN60529-1 (IEC529-1)
