category:
Valves
manufacture:
Winters Instruments
mpn:
SMV532
subcategory:
Smv Mini Ball Valve Smv Lf Lead Free Mini Ball Valve
Product Description

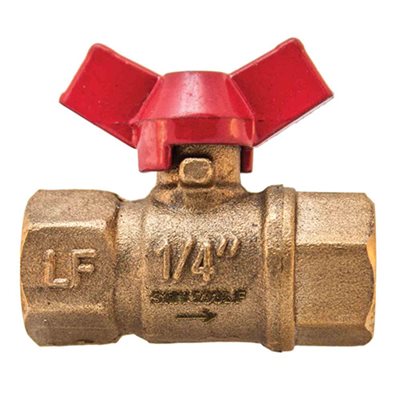

Winters Instruments - SMV532
Features
- An economical isolation valve for pressure gauges and transmitters
- Brass or lead free brass wetted parts
- ASME B1.20.1 compliant
- CRN registered
- 5 year warranty
Applications
Provides flow control for non-corrosive applications including water lines
Additional Information
BodySMV: #59-1 Forged brass, SMV-LF: Lead free forged brass
BallSS
GasketsPTFE
HandleSteel, plated, plastic covered
Process Temperature-9°F to 212°F (-23°C to 100°C)
Maximum Operating Pressure400 psi (2,758 kPa)
Connection1/4” NPTF x 1/4” NPTM, 1/4” NPTF x 1/4” NPTF
WarningThis product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
