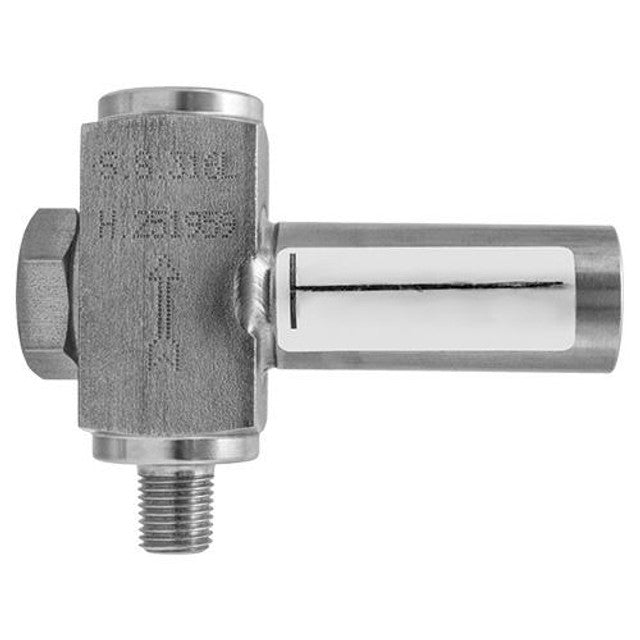

Winters Instruments - SOP1450580050
Features
- Setpoint adjustments are made by manipulating an external adjusting screw and lock nut
- Automatically shuts off pressure to the instrument once the adjustable preset pressure is exceeded
- RoHS compliant
- CRN registered
- 5 year warranty
Applications
Utilized to protect pressure instruments against surges and pulsations|Available in Bellows and Piston Type
Additional Information
BodyBellows Type: 316 SS, Piston Type: 316 SS
Gasket FKM
Maximum Operating Pressure10,000 psi (68,950 kPa)
Temperature Rating-40°F to 248°F (-40°C to 120°C)
Connection1/4”NPTM x 1/4” NPTF or 1/2” NPTM x 1/2” NPTF
CategoryAdditional Accessories
ManufactureWinters Instruments
MpnSOP1450580050
SubcategorySop Over Pressure Protector
