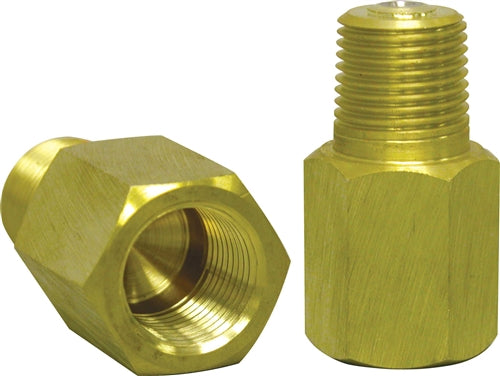

Winters Instruments SSN520 Ssn Snubber / Ssn-Lf Lead Free Snubber

Winters Instruments SSN520 Ssn Snubber / Ssn-Lf Lead Free Snubber

Back Order

Get it by Thu, May 22 - Tue, May 27

SKU kpi073-SSN520

0
(0 rating)
$122.43 USD
$122.43 USD
Sale Sold out
Shipping calculated at checkout.
 More payment options
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Additional Accessories
manufacture: Winters Instruments
mpn: SSN520
subcategory: Ssn Snubber Ssn Lf Lead Free Snubber

Product Description

Winters Instruments - SSN520

Features

  • Incorporates a sintered, porous 316 stainless steel snubbing element with a large surface area to ensure long term effectiveness
  • Available in the three standard viscosity classifications of heavy oil, water and air
  • Brass, lead free brass or stainless steel housings can be specified depending upon pressure media and operating pressure
  • ASME B40.100 compliant
  • RoHS compliant (SS snubber only)
  • CRN registered
  • 5 year warranty

Applications

To significantly lessen the damaging effects of pulsation on gauges, transducers, transmitters, manometers and pressure switches

Additional Information

Operating Temperature(For Stainless Steel)-320°F to 1,500°F (-195°C to 815°C)
Operating Pressure(For Stainless Steel) Maximum 20,000 psi (137,900 kPa)
Burst Pressure(For Stainless Steel) 60,000 psi (413,700 kPa)
Housing(For Stainless Steel) 316 SS
Snubbing Element(For Stainless Steel) Sintered, porous type 316 SS
Retainer(For Stainless Steel) 300 series SS
Warning (brass internals only)(For Stainless Steel)N/A
Operating Temperature(For Brass)-65°F to 650°F (-53°C to 343°C)
Operating Pressure(For Brass)Maximum 10,000 psi (68,950 kPa)
Burst Pressure(For Brass)30,000 psi (206,850 kPa)
Housing(For Brass)SSN: Brass, SSN-LF: Lead free brass
Snubbing Element(For Brass)Sintered, porous type 316 SS
Retainer(For Brass)300 series SS
Warning(For Brass)Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
