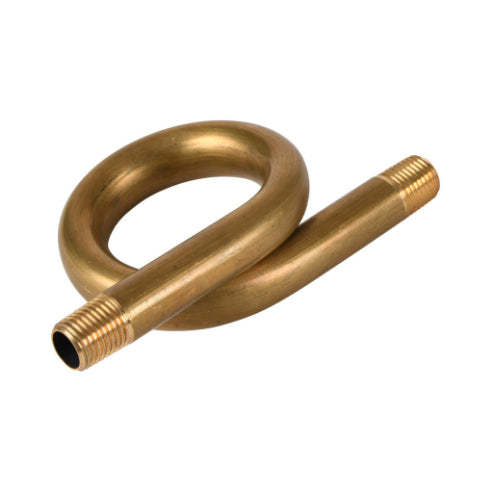

Winters Instruments - SSP2719
Features
- On steam service, the syphon will prevent hot steam from entering a pressure gauge, diaphragm seal or transmitter
- Available in brass/steel for non-corrosive applications and stainless steel for corrosive applications
- RoHS compliant (304 SS and 316 SS syphons only)
- CRN registered
- 5 year warranty
Applications
Recommended for applications involving temperatures above 100°F (37°C)
Additional Information
MaterialSchedule 40 seamless: Carbon Steel Coil, Brass, 304 SS, 316 SS,Schedule 80: Carbon Steel Coil, 304 SS, 316 SS
Style180° coil
Connection1/4” NPT male x 1/4” NPT male, 1/2” NPT male x 1/2” NPT male
Maximum Operating PressureSchedule 40 seamless: Brass, carbon steel, 304 SS, 316 SS suitable up to 500 psi at 680°F (360°C), Schedule 80 seamless: Carbon steel, 304 SS, 316 SS suitable up to 1,650 psi at 630°F (332°C)
WarningThis product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
CategoryAdditional Accessories
ManufactureWinters Instruments
MpnSSP2719
SubcategorySsp Syphon
