category:
Thermometers
manufacture:
Winters Instruments
mpn:
TBM20090
subcategory:
Tbm Bi Metal Thermometer
Product Description

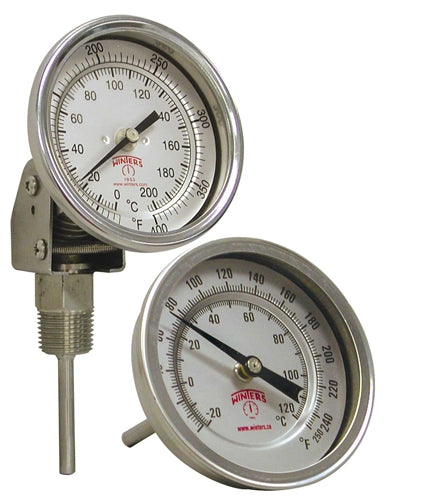

Winters Instruments - TBM20090
Features
- A general purpose, versatile 1” (25mm) to 6” (150mm) dial, 304 stainless steel thermometer
- Bi-metallic sensing element for reliable readings
- Back, bottom or adjustable angle connection
- Welded stem length from 2.5” (63mm) and up
- ±1% accuracy
- Anti-parallax dial that reduces operator reading errors (3” (75mm)–6” (150mm))
- Recalibrator screw is standard on all dial sizes
- ASME B40.200 compliant
- RoHS compliant
- 5 year warranty
- Bi-metal thermometers are useful instruments for measuring temperature. If you’re looking for a bi-metal thermometer, look no further! We offer some of the top-performing bi-metal thermometers in the market.
Applications
Industrial process, heating and air conditioning, ventilation and wastewater applications
Additional Information
Dial1” (25mm), 2” (50mm): Aluminum with black markings, flat dial, 3” (75mm), 4” (100mm), 5” (127mm), 6” (150mm) Aluminum with black markings, anti-parallax
CaseAISI 304 SS
StemAISI 304 SS, centre back, bottom or adjustable angle configurations (316 SS optional*), 1" (25mm), 2” (50mm) dial: Centre back connection only
Recalibrator ScrewStandard
Lens1” (25mm): Polycarbonate, Others: Glass standard, hermetically sealed
RingAISI 304 SS
Connection1” (25mm): None, 2” (50mm): 1/4” NPT standard, 3” (75mm), 4” (100mm), 5” (127mm), 6” (150mm): 1/2” NPT standard
MovementBi-metallic coil
PointerAluminum, painted black
Maximum Operating Pressure125 psi (861 kPa)
Operating Temperature75% of full scale value (recommended maximum)
Ambient Temperature-58°F to 248°F (-50°C to 120°C)
Accuracy±1% of full scale
Enclosure Rating2" (50mm) to 6" (150mm): IP68
