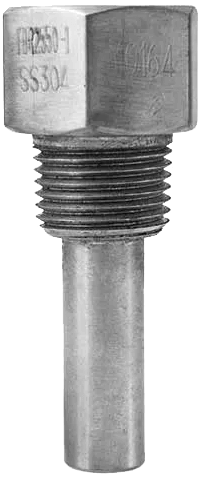

Winters Instruments - TBR2550-1
Features
- Available in a wide range of materials for use on most applications
- Standard “stepped construction” offering is complemented by an array of custom thermowells including: straight, tapered, sanitary and flanged configurations
- RoHS compliant (304 SS and 316 SS thermowells only)
- CRN registered
- 5 year warranty
Applications
Allows for the creation of a “sealed system”, whereby the thermometer can be removed from the application without the need for shutting down or draining the system|To protect the thermometer from possible exposure to the process media
Additional Information
Thermometer Connection1/2” NPTF connection standard, Other thread sizes are available upon request
Process Connection1/2”, 3/4” or 1” NPT connection standard, Other thread sizes are available upon request
Bore0.260” (6.5mm) bore standard
ConstructionStepped construction standard, Tapered construction available upon request
MaterialBrass, 304 SS, 316 SS standard, Other materials available upon request
Warning This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
CategoryThermowells
ManufactureWinters Instruments
MpnTBR2550-1
SubcategoryTbr Bi Metal Threaded Thermowell
