category:
Rtds Thermocouples
manufacture:
Winters Instruments
mpn:
TY525002
subcategory:

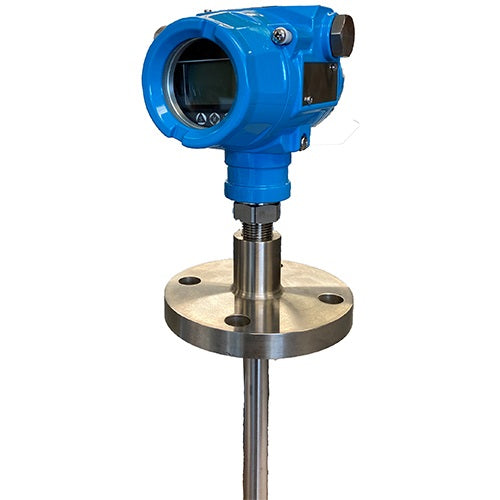

Winsmart Ty52 Smart Explosion Proof Temperature Transmitter
Product Description
Winters Instruments - TY525002
Features
- Integrated temperature transmitter with ASIC signaling transmitter
- Explosion proof smart temperature transmitter for hazardous locations
- -50 to 400°C (-58/752°F ) measure range
- 0.5% accuracy
- Simple to operate 3-push button control
- HART® or Modbus communications available
- Low power option available
- Re-zero function for safe field calibration
- 5 year warranty
Applications
TY52 can be utilized and installed anywhere where temperature measurement is required. From Oil Gas installations to Power Generation, this product has a rugged design and is equipped with the communication protocols to meet all your day to day requirements
Additional Information
Output Signal4/20 mA, 2-wire / V
Sensor TypePT100 RTD
Measuring Range-50 to 400°C (-58/752°F )
LCD DisplayLCD display (standard) or without LCD display (optional)
Accuracy0.5% accuracy
Stability0.05% or 0.1°C / year
Temperature RangeWorking: -40/85°C (with display -20/70°C), -40/185°F (without display -4/158°F), Storage: -40/100°C (with display -20/70°C), -40/212°F (without display -4/158°F)
Working Humidity 0-95%
Pressure Connection1/2” NPTM, 1/2 GM or Flanged
HousingRugged die-cast aluminum housing, painted blue
Wetted Parts316 SS, 304 SS
Power Consumption500 mW @ 24 VDC, 20.8 mA (LCD); =493mW @ 24VDC, 20.55mA (without LCD)
Wake Up Time6 seconds
Vibration4g, 2…100Hz, According to IEC 60068-2-6
Available Temperature UnitsCelsius (oC), Fahrenheit (oF)
Protection ClassEMI, ESD, RFI, reverse polarity protected; Surge protection IEC1000-4-5
ApprovalsClass I, Division 1, Groups A, B, C D, T6... T1, Class I, Division 2, Groups A, B, C D, T4...T1 , Class II, Division 1, Groups E, F G, T80°C... T400°C, Class III
Protection ClassIP66
