category:
Pressure Gauges
manufacture:
Winters Instruments
mpn:
ZR
subcategory:
Pem Zr Economy Stabilizr Gauge
Product Description

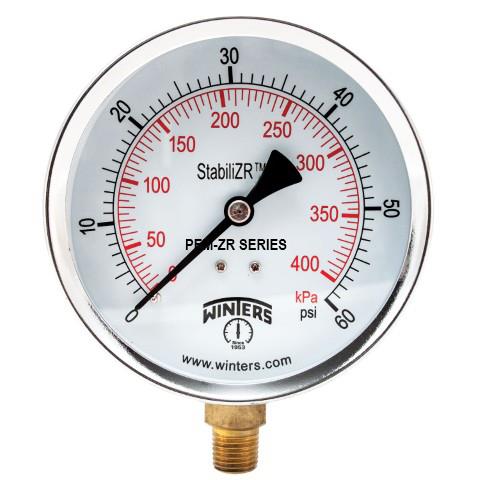

Winters Instruments - ZR
Features
- StabiliZR® dampened movement minimizes effects of pulsation and vibration
- Most economical, all-purpose pressure gauge
- 1.5” (40mm) to 4” (100mm) sizes
- Friction bezel rings
- Black steel case
- Brass wetted parts
- ASME B40.100 compliant (EN837-1 available)
- ±3-2-3% accuracy
- CRN registered
- 5 year warranty
Applications
- General purpose gauge for plumbing, heating, air conditioning, pneumatic, hydraulic, water tanks and air compressors
- Suitable for non-clogging and non-corroding media
Additional Information
Dial1.5” (40mm), 2” (50mm), 2.5” (63mm), 4” (100mm) white aluminum with black and red markings
Case Steel, painted black (plastic available)
Lens1.5” (40mm), 2” (50mm), 2.5” (63mm): Acrylic 4” (100mm): Glass
Ring1.5” (40mm), 2” (50mm): Steel, painted black 2.5” (63mm), 4” (100mm): Steel, chrome plated
SocketBrass
Connection1/8” NPT or 1/4” NPT standard
Bourdon TubePhosphor bronze
MovementBrass, StabiliZR®️ dampened movement (silicone in sealed chamber)
PointerAluminum, black
WeldingSilver alloy
Over-Pressure Limit25% of full scale value
Working PressureMaximum 75% of full scale value
Ambient Temperature-76°F to 200°F (-60°C to 93°C)
Process Temperature-40°F to 150°F (-40°C to 65°C)
Accuracy±3-2-3% ANSI/ASME Grade B
Enclosure RatingIP52
